Product Details
Place of Origin: Dongguan, China
Brand Name: SHENHUA
Certification: CE,UL
Model Number: SME-860
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Plywood+Vacuum package, size: 1600*1700*2040 (L*W*T) mm
Delivery Time: 40~45 work days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 200 sets per year
Stencil Size: |
29*29*1.57 Inches (L*W*T) As Max |
Wash Liquid: |
Water-based Solder Paste Liquid |
Rinse Water: |
DI Water Or DM Water Or Purifier Water |
Dry: |
Hot Air Blow Dry |
Wah Time: |
3~6min |
Rinse Time: |
1~2min |
Dry Time: |
3~6min |
Liquid/water Filter: |
1um/1um Real Time |
Power Supply: |
AC380V, 3P, 50/60Hz, 28KW |
Compressed-air Supply: |
0.5~0.7Mpa,200~400L/min |
Weight: |
820KG |
Machine Size: |
1400*1470*2050( L*W*T) Mm |
Stencil Size: |
29*29*1.57 Inches (L*W*T) As Max |
Wash Liquid: |
Water-based Solder Paste Liquid |
Rinse Water: |
DI Water Or DM Water Or Purifier Water |
Dry: |
Hot Air Blow Dry |
Wah Time: |
3~6min |
Rinse Time: |
1~2min |
Dry Time: |
3~6min |
Liquid/water Filter: |
1um/1um Real Time |
Power Supply: |
AC380V, 3P, 50/60Hz, 28KW |
Compressed-air Supply: |
0.5~0.7Mpa,200~400L/min |
Weight: |
820KG |
Machine Size: |
1400*1470*2050( L*W*T) Mm |
Machine Description

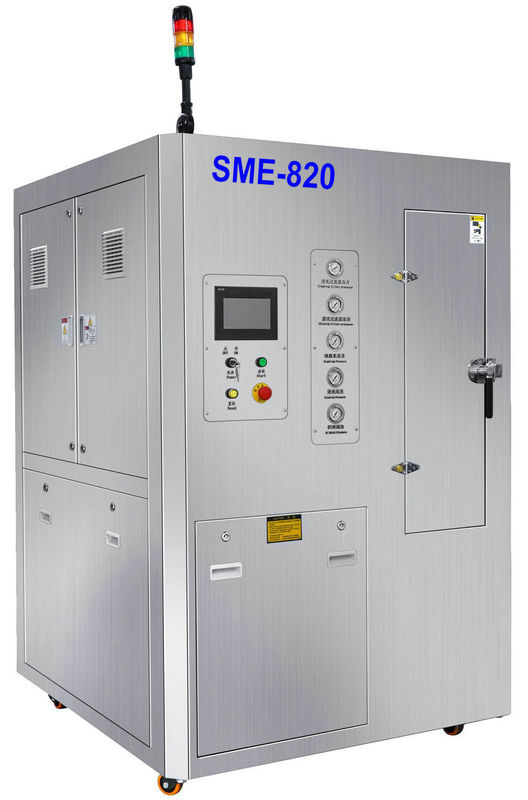

SMT-800 MES connected 200V and 415V electric stencil cleaning machine by using aqueous liquid and DI water.
Industrial PC controlled MES system connected smt solder paste stencil electric cleaning machine is an automatic, industrial + PLC controlled and MES system connected smart equipment. SME-860 has MES modular and MES port and can provide machine parameters to customers' MES system.

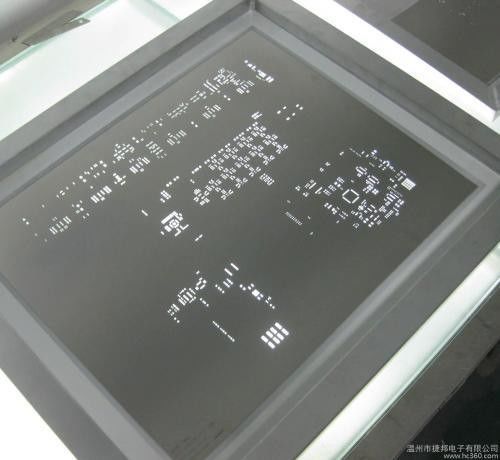

SME-800 Multiple application: solder paste stencil, red glue stencil, 3mm thickness red glue cooper stencil, 3mm red glue plastic stencil, mis-printed PCB and squeegees.
SME-800 cleaning process: water-based liquid wash--DI water rinse--hot air blow dry.

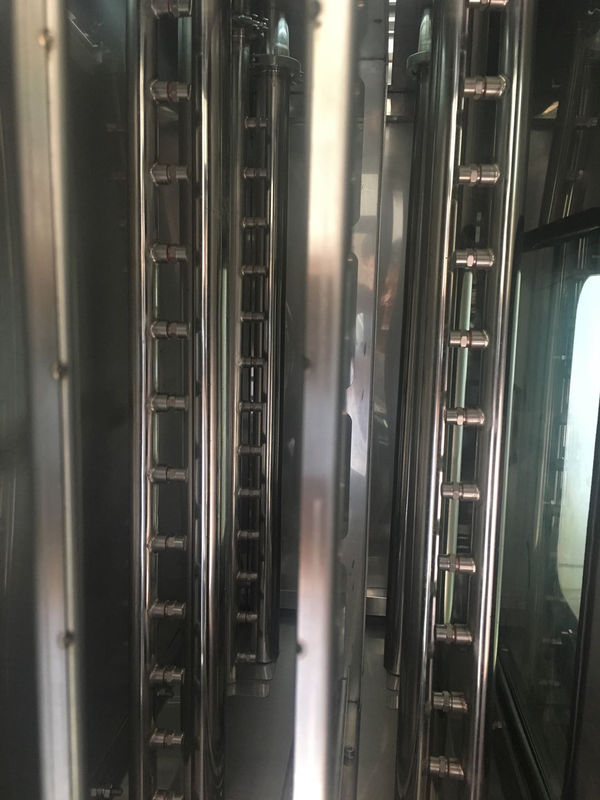

SME-800 has the stable mechanism structure--4 cleaning spray rods and 4 air knives fixed at the left and right side of stencil; stencil move back and forth in the cleaning cabinet..
Machine Features:
1. Process: water-based liquid wash + DI water rinse+ hot air blow dry process.
2. Multi-use: solder paste /red glue stencil, red glue cooper stencil/ plastic mask, mis-printed PCB, squeegee.
3. Stable mechanism: stencil moves back and forth in the wash cabinet while spray rods and air knives fixed.-- make the machine stable and relaible.
4. Excellent cleaning result: up to 4~5kg/cm2 spray pressure and high volume nozzles, very good cleaning result.
5. Real time filtrer system: liquid and water can be recirculated used, no solder balls comes back to stencil surface again. Especially for precise stencil.
6. Less distance, more efficient:4 spray rods and air knives fixed on left and right side of stencil, 750mm long stencil move distance reduce to 420mm.
7. Pressure meters : cleaning liquid / rinse water/liquid filter/water filter pressure meters on front panel,easy to watch and monitor them.
8. SUS304 stainless steel structure:alkalic and alkacid corrision protection. All pipes, fIlter barrel and pumps are sus304 material, no plastic pipes at all.
9. One key easy operation: just push “start” key, all process are running automatically according to program setting.
10. Visible: window on right side of clean chamber, all process are visible.
11. Liquid cost down: Compressed air blow out remain liquid in pipes and pumps after cleaning process , save up to 50% liquid.
12. PLC control, TP English operation interface: clean time, temp;rinse time, temp; dry time, temp...parameters easy to set and modify.
13. Auot liquid and water add and discharge function:Equipped with air pump liquid/water add and discharge automatically.
14. World famous, high quality parts from Scheidier, Mitsubish, Omron, SMC, CKD.
15. LS protection: 4 levels liquid and water levle switch, low level to protect heater, pumps,M and H level remind to add liuqid or water,HH level to protect overflow.
16. Heaters temp control: PID calculattion , ±3°accuracy,over temp protection.
17. Water open loose and close loop: both this 2 loops can be choosed to use.
18. Excellent software function: auot/manual mode, I/O ports, paramenters setting,filter replace reminding...
Machine Spec:
| S/N | Item | SPEC | Remarks |
| 1 | stencil size | L29*W29*T1.57inches | |
| 2 | wash time | 3~5min | |
| 3 | rinse time | 1~2min | |
| 4 | dry time | 3~6min | |
| 5 | wash liquid temp | room temp~60℃ | |
| 6 | DI water temp | room temp~60℃ | |
| 7 | hot air temp | room temp~100℃ | |
| 8 | liquid tank/water tank capacity | 60L/60L | |
| 9 | liquid/water spray pressure | 4~5kg/cm2 | |
| 10 | liquid type | water-based liquid | |
| 11 | Water type | DI water or DM water | |
| 12 | liquid/water filter precision | 1um/1um | |
| 13 | liquid heat power | 9KW | |
| 14 | water heat power | 9KW | |
| 15 | hot air heat power | 6KW | |
| 16 | electric power and air supply | AC380V,3P,50/60Hz,28KW,0.5Mpa | |
| 17 | Machine size | L1300*W1400*H1970mm | |
| 18 | Machine weight | 720kg |
Questions and Answers:
Q1. Why choose this electric stencil cleaning machine?
A1: Because SME-800 use water-based liquid which is safety, environmental-protection and easy to rinse.
Q2: Can SME-800 clean 3mm thick red glue printed cooper stencil and palstic mask?
A2: Yes, it can because its powerful cleaning pressure can penatrate very little holes in the stencil and mask to wash the red glue out.
Q3: Is it very dry after wash, rinse and dry process?
A3: Yes, it is very dry because hot air temperture and air blow result.
Q4: How SME-800 clean mis-printed PCB, squeegees and frameless stencils?
A4: By using our mis-printed PCB fixture, squeegee fixture, frameless stencil fixture.
Cleanin result comparison before and after cleaning:
