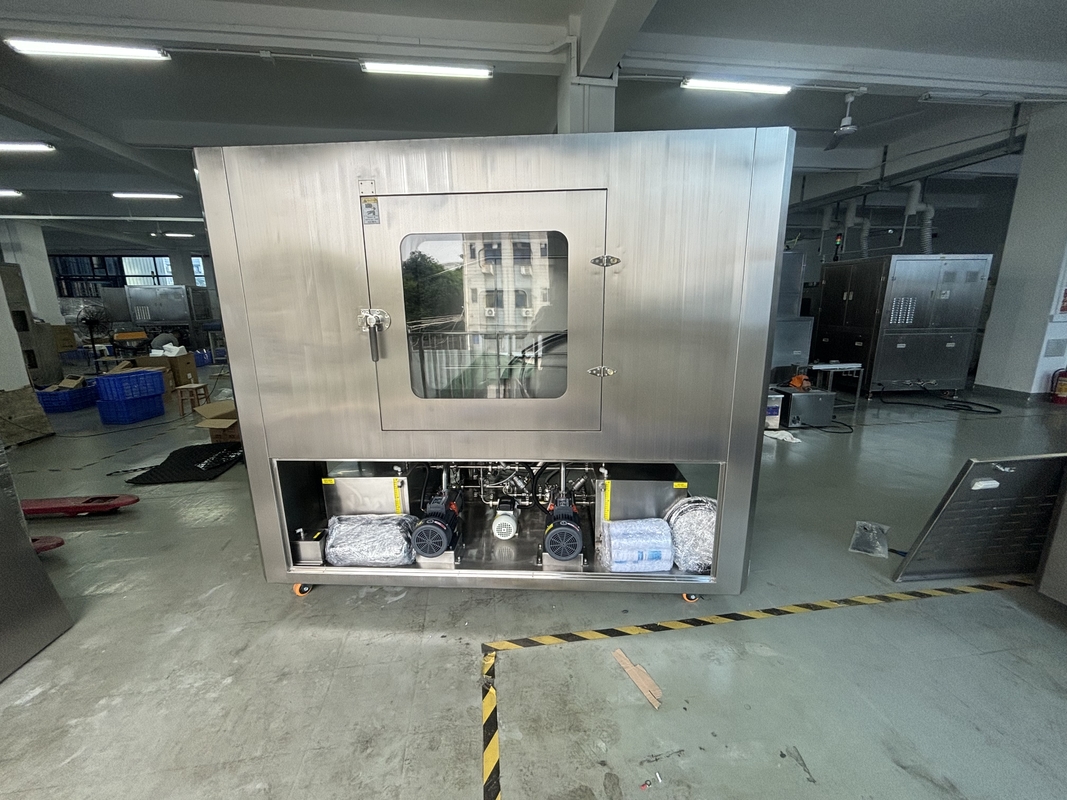

An automatic cleaning machine for washing two steel sheet templates

        SME-1600 is a water-based electric steel mesh cleaning machine, used for SMT solder paste steel mesh, red glue steel mesh, copper mesh and resin mesh. Misprinted PCB Automatic cleaning of PCBA. The machine adopts a PLC control system to automatically complete the processes of cleaning, rinsing and drying in one machine, ensuring the stability, reliability and high-quality cleaning effect of the equipment.

1. The entire body is made of 304 stainless steel, which is resistant to acid and alkali corrosion and is sturdy and durable.
2. Cleaning movement mode: The steel mesh remains stationary, while the spray rod and air knife move forward and backward. The running distance can be adjusted.
3. Water-based cleaning solution, with real-time circulation and filtration of rinsing DI water, is suitable for cleaning precision steel mesh.
4. High-flow air knife system ensures rapid hot air drying.
5. One-click operation, cleaning, rinsing and drying are automatically completed in one go according to the set program.
6. The cleaning room is equipped with visual Windows, making the cleaning process clear at a glance.
7. Compressed air is adopted to recover the residual chemical solution in the pipeline and pump, effectively saving the cleaning solution.
8. It is equipped with automatic liquid addition and drainage functions.
9. The panel is equipped with a pressure gauge, indicating the pressure for cleaning, rinsing, cleaning the filter bucket, and rinsing the filter bucket.
10. Controlled by PLC+ industrial control computer program, parameters such as solution temperature, cleaning time, rinsing frequency/time, rinsing temperature, drying time and drying temperature can be edited and set
11. High-quality electrical components from Mitsubishi, Schneider,SMC, etc. are durable, safe and reliable
12.MES integration is available, and a barcode scanner is optional
