Water Based Liquid 29*29 inches size solder paste stencil Cleaning Machine for stencil and misprinted PCB

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-800

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: negotiation

Packaging Details: Plywood+Vacuum package, size: 1600*1700*2040 (L*W*T) mm

Delivery Time: 40~45 work days

Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P

Supply Ability: 200 sets per year

Get Best Price
Product Details
High Light:

0.7Mpa circuit board cleaning machine

,

750mm circuit board cleaning machine

,

0.7Mpa stencil washing machine

Stencil Size:
750*750*40 Mm (L*W*T) As Max
Wash Liquid:
Water-based Solder Paste Liquid
Rinse Water:
DI Water Or DM Water Or Purifier Water
Dry:
Hot Air Blow Dry
Wah Time:
3~6min
Rinse Time:
1~2min
Dry Time:
3~6min
Liquid/water Filter:
1um/1um Real Time
Power Supply:
AC380V, 3P, 50/60Hz, 28KW
Compressed-air Supply:
0.5~0.7Mpa,200~400L/min
Weight:
720KG
Machine Size:
1300*1400*1970( L*W*T) Mm
Stencil Size:
750*750*40 Mm (L*W*T) As Max
Wash Liquid:
Water-based Solder Paste Liquid
Rinse Water:
DI Water Or DM Water Or Purifier Water
Dry:
Hot Air Blow Dry
Wah Time:
3~6min
Rinse Time:
1~2min
Dry Time:
3~6min
Liquid/water Filter:
1um/1um Real Time
Power Supply:
AC380V, 3P, 50/60Hz, 28KW
Compressed-air Supply:
0.5~0.7Mpa,200~400L/min
Weight:
720KG
Machine Size:
1300*1400*1970( L*W*T) Mm
Product Description

SHENHUA is a leading smt stencil cleaner manufacturer company in China. We make pneumatic stencil cleaning machine, electric spray cleaning machine and ultrasonic stencil cleaning machine. We've installed over 800 sets in domestic and overseas customer's factories. We sold 100 sets SME-750 pneumatic stencil cleaning machine in 2020.

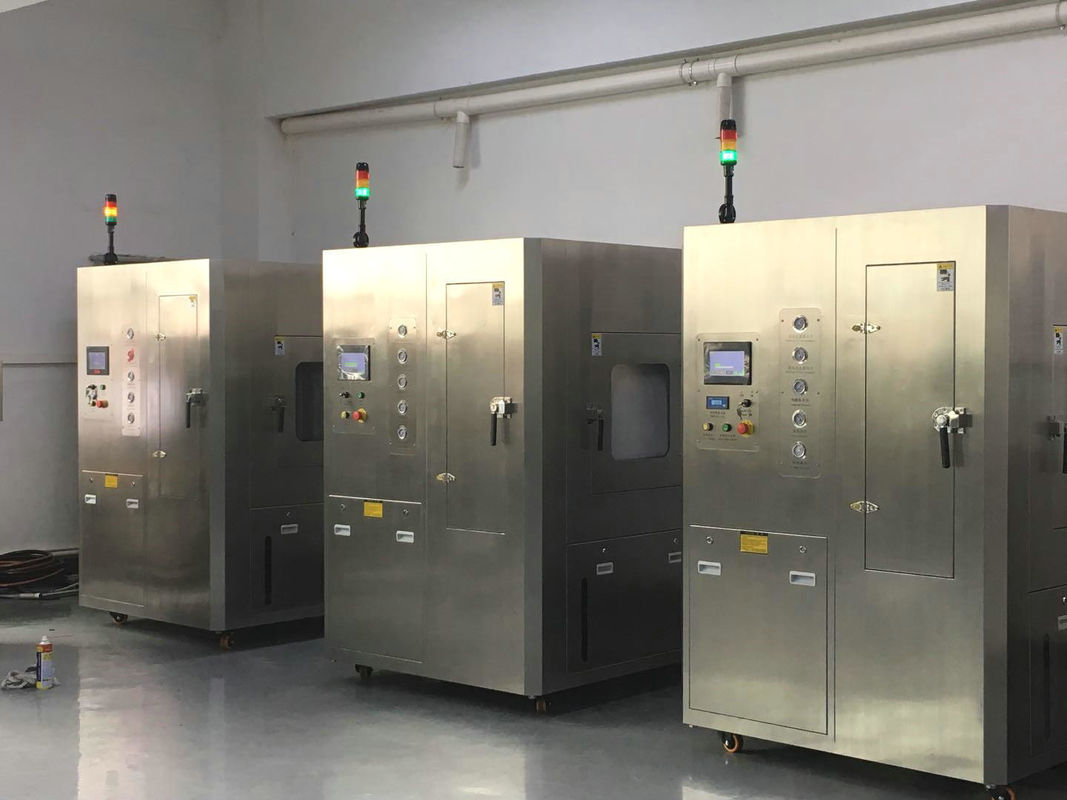

Machine Description

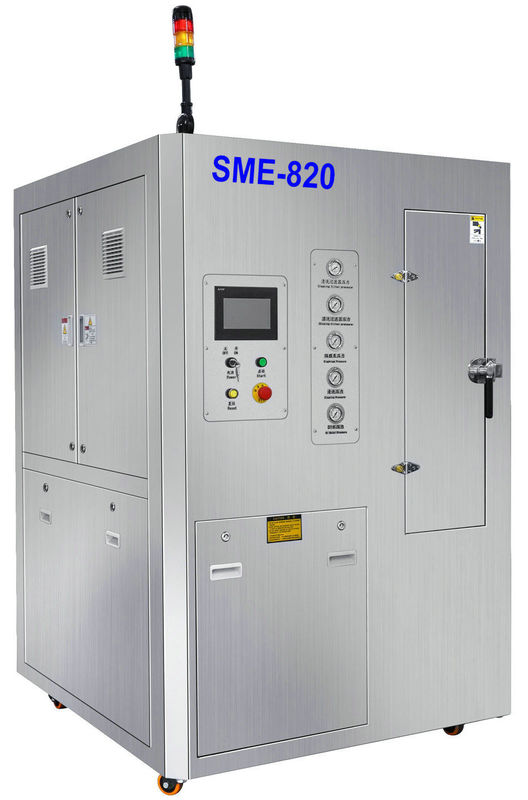

SME-800 Water Based Liquid 29*29 Inches Size Mis Printed PCB Cleaning Machine And Stencil Cleaning Machineis an automatically, water base liquid clean and DI water rinse machine. It can clean stencil size up to 29*29mm.



Liquid and water can add and discharge automatically.



SME-800 Multiple application: solder paste stencil, red glue stencil, 3mm thickness red glue cooper stencil, 3mm red glue plastic stencil, mis-printed PCB and squeegees.



SME-800 cleaning process: water-based liquid wash--DI water rinse--hot air blow dry.



SME-800 has the stable mechanism structure--4 cleaning spray rods and 4  air knives fixed at the left and right side of stencil; stencil move back and forth in the cleaning cabinet..

Machine Features:

1. Process: water-based liquid wash + DI water rinse+ hot air blow dry process.
2. Multi-use: solder paste /red glue stencil, red glue cooper stencil/ plastic mask, mis-printed PCB, squeegee.
3. Stable mechanism: stencil moves back and forth in the wash cabinet while spray rods and air knives fixed.-- make the machine stable and relaible.
4. Excellent cleaning result: up to 4~5kg/cm2 spray pressure and high volume nozzles, very good cleaning result.
5. Real time filtrer system: liquid and water can be recirculated used, no solder balls comes back to stencil surface again. Especially for precise stencil.
6. Less distance, more efficient:4 spray rods and air knives fixed on left and right side of stencil, 750mm long stencil move distance reduce to 420mm.
7. Pressure meters : cleaning liquid / rinse water/liquid filter/water filter pressure meters on front panel,easy to watch and monitor them.
8. SUS304 stainless steel structure:alkalic and alkacid corrision protection. All pipes, fIlter barrel and pumps are sus304 material, no plastic pipes at all.

9. One key easy operation: just push “start” key, all process are running automatically according to program setting.
10. Visible: window on right side of clean chamber, all process are visible.
11. Liquid cost down: Compressed air blow out remain liquid in pipes and pumps after cleaning process , save up to 50% liquid.
12. PLC control, TP English operation interface: clean time, temp;rinse time, temp; dry time, temp...parameters easy to set and modify.
13. Auot liquid and water add and discharge function:Equipped with air pump liquid/water add and discharge automatically.
14. World famous, high quality parts from Scheidier, Mitsubish, Omron, SMC, CKD.
15. LS protection: 4 levels liquid and water levle switch, low level to protect heater, pumps,M and H level remind to add liuqid or water,HH level to protect overflow.
16. Heaters temp control: PID calculattion , ±3°accuracy,over temp protection.
17. Water open loose and close loop: both this 2 loops can be choosed to use.
18. Excellent software function: auot/manual mode, I/O ports, paramenters setting,filter replace reminding...





Machine Spec:

S/N Item SPEC Remarks
1 stencil size L750*W750*T40mm
2 wash time 3~5min
3 rinse time 1~2min
4 dry time 3~6min
5 wash liquid temp room temp~60℃
6 DI water temp room temp~60℃
7 hot air temp room temp~100℃
8 liquid tank/water tank capacity 60L/60L
9 liquid/water spray pressure 4~5kg/cm2
10 liquid type water-based liquid
11 Water type DI water or DM water
12 liquid/water filter precision 1um/1um
13 liquid heat power 9KW
14 water heat power 9KW
15 hot air heat power 6KW
16 electric power and air supply AC380V,3P,50/60Hz,28KW,0.5Mpa
17 Machine size L1300*W1400*H1970mm
18 Machine weight 720kg



Questions and Answers:

Q1. Why choose this electric stencil cleaning machine?

A1:  Because SME-800 use water-based liquid which is safety, environmental-protection and easy to rinse.



Q2: Can SME-800 clean 3mm thick red glue printed cooper stencil and palstic mask?

A2: Yes, it can because its powerful cleaning pressure can penatrate very little holes in the stencil and mask to wash the red glue out.



Q3: Is it very dry after wash, rinse and dry process?

A3: Yes, it is very dry because hot air temperture and air blow result.



Q3: How SME-800 clean mis-printed PCB, squeegees and frameless stencils?

A4: By using our mis-printed PCB fixture, squeegee fixture, frameless stencil fixture.

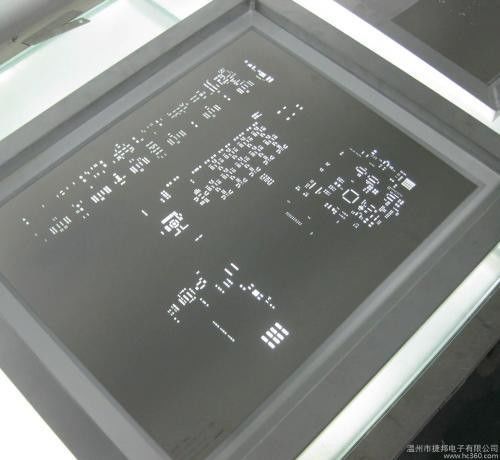

Cleanin result comparison before and after cleaning:



Water Based Liquid 29*29 inches size solder paste stencil Cleaning Machine for stencil and misprinted PCB 0





Water Based Liquid 29*29 inches size solder paste stencil Cleaning Machine for stencil and misprinted PCB 1
