LED Solder Paste Printing Stencil 1500*1500mm Big Size Stencil Auto Cleaning Machine

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-1500E

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 1100*1200*2100 mm(L*W*H)

Delivery Time: 25~30 days

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Supply Ability: 300sets/Year

Get Best Price
Product Details
High Light:

2400mm Stencil Cleaning Machine

,

SME LED Stencil Cleaning Machine

,

SME automatic stencil printer

Material:
SUS304 Stainless Steel
Stencil Size:
L1500*W1500*T50mm As Max
Liquid Tank Capacity:
80L
Wash Time:
3~5min
Blow Dry Time:
3~5min
Compressed-air Supply:
0.5~0.7Mpa
Compressed-air Flow Rate:
800~1000L/min
Filter:
1mm/100um/1um
Machine Size:
1200*1740*2400( L*W*T) Mm
Machine Weight:
560KG
Material:
SUS304 Stainless Steel
Stencil Size:
L1500*W1500*T50mm As Max
Liquid Tank Capacity:
80L
Wash Time:
3~5min
Blow Dry Time:
3~5min
Compressed-air Supply:
0.5~0.7Mpa
Compressed-air Flow Rate:
800~1000L/min
Filter:
1mm/100um/1um
Machine Size:
1200*1740*2400( L*W*T) Mm
Machine Weight:
560KG
Product Description

SHENHUA is a leading smt stencil cleaner manufacturer company in China. We make pneumatic stencil cleaning machine, electric spray cleaning machine and ultrasonic stencil cleaning machine. We've installed over 800 sets in domestic and overseas customer's factories. We sold 100 sets SME-750 pneumatic stencil cleaning machine in 2020.

Product Description

  LED Solder Paste Printing Stencil 1500*1500mm Big Size Stencil Auto Cleaning Machine. SME-1500E It is specially used to  to clean big size LED light bar stencil. Famous pneumatic parts, strictly produce process, patented rotation spray rods guarantee you a high quality stencil cleaning machine.

  To clean solder paste stencil is very easy for this machine.

  It make your cleaning process safe, easy, cost down and efficient.
  Both solvent and water-based clean liquid can be use in SME-1500E. Cleaning result is the same-100% clean. We provide high quality machines!

Machine Features:

1. SUS 304 structure, Acid and Alkali corrosion resistance, 10 years lifespan.
2. Only driven by compressed air, no use electric power at all.
3. One button easy operation, clean and dry complete automatically.

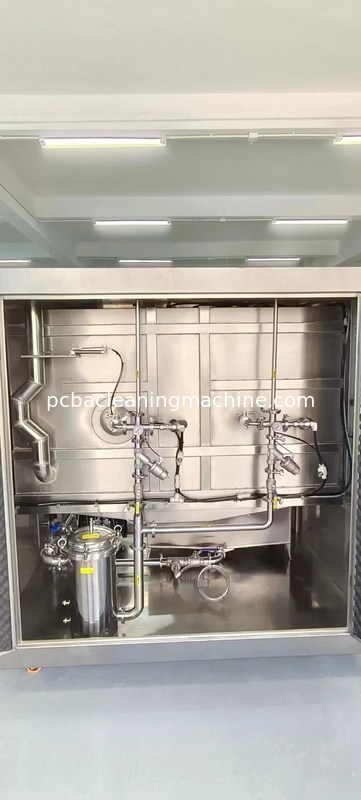

4. Patent 360° rotation spray rods on both sides, ensure good cleaning quality and stable stencil tension.
5. Liquid recycle use, low consumption.
6. Inner-lock safety door and safety valve, once open, machine will be stopped immediately.

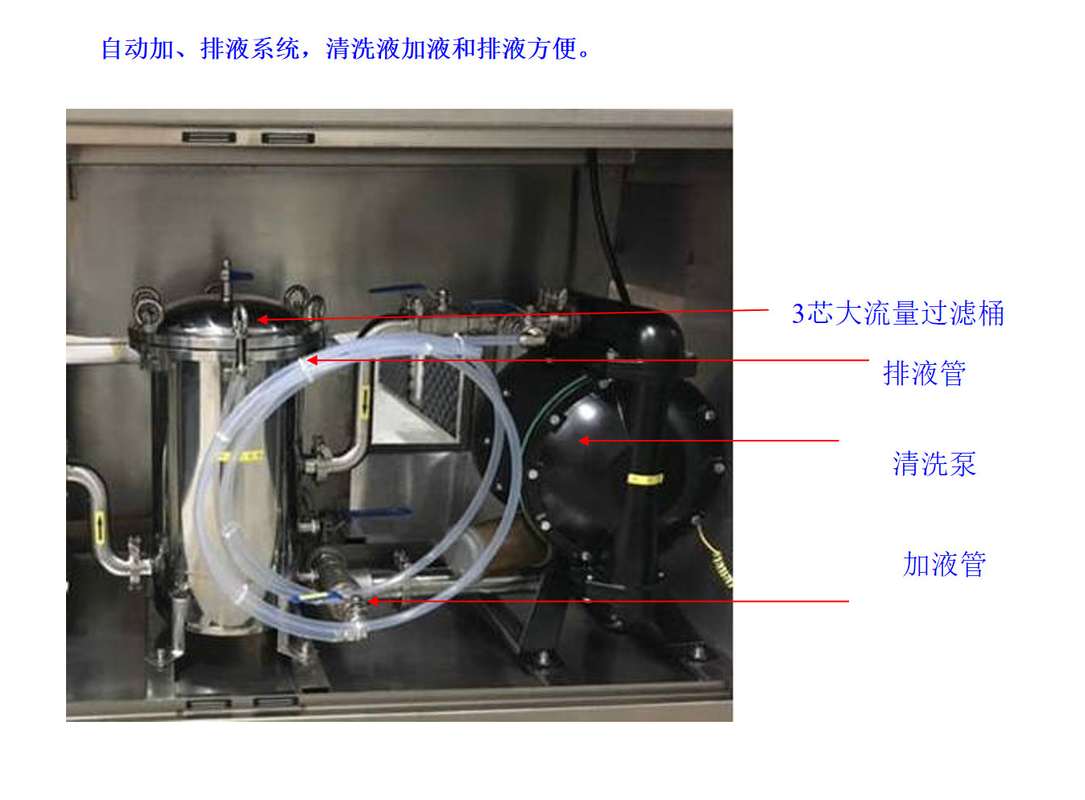

7. 3-level precise liquid filtering system. Liquid used repeatedly.

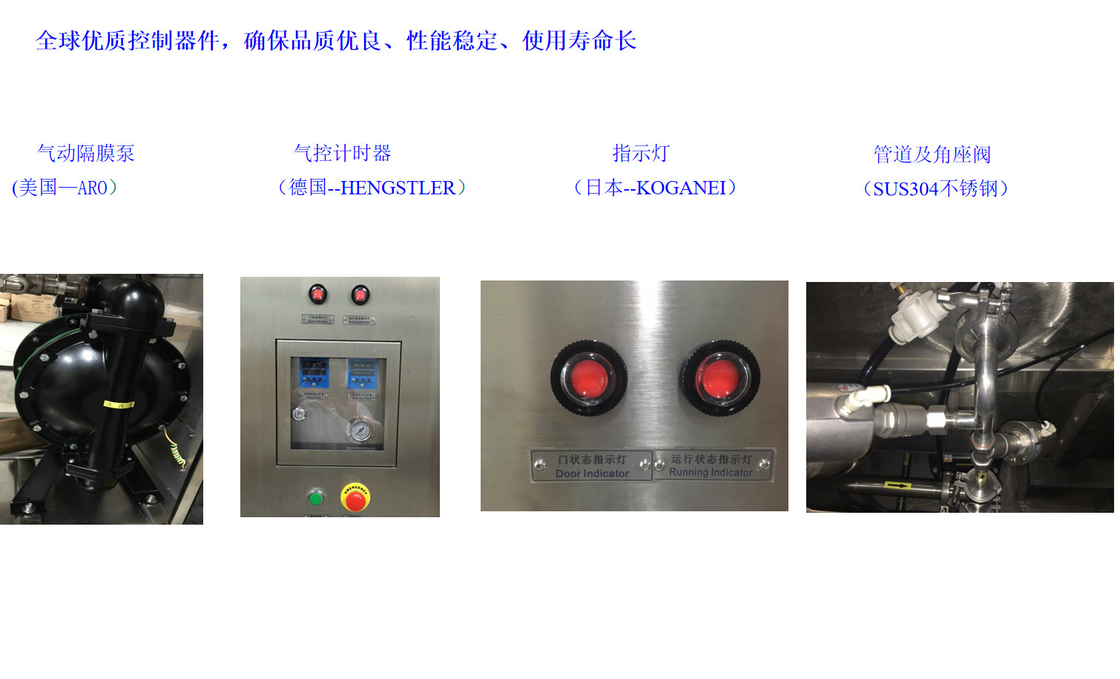

8. Super well-known Pneumatic parts from all over the word manufactures.
9. Modular design, easy maintenance.

Machine Spec:

Item SME-1500 spec
Max stencil size L1500 x W1500 x H50(mm)
Liquid tank 80L
Clean time 3~5min
Dry time 2~5min
Compressed air pressure 0.5~0.7Mpa
Air flow rate 800~1000L/min

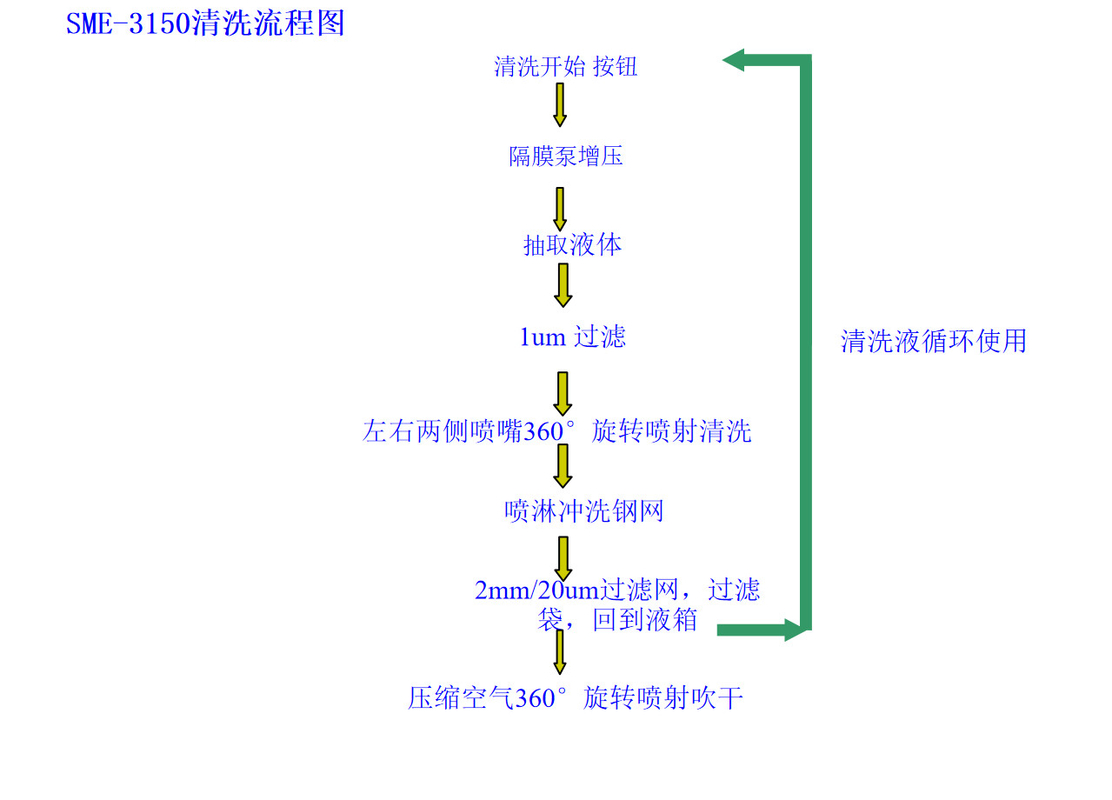

Clean method 360°rotat spray clean + compressed air blow dry
Filter system 20um/5um/1um, 3 level
Machine size L1200 x W1740 x H2400(mm)
Machine weight 560KG

Other accessories , please discuss with us in details.

Customer Question & Answer

Ask something for more details
Q1: Can SME-1500 clean stencil without frame?
A1: Yes, it can, we need a stencil hold jig for this kind of stencil without frame.

Q2: Can SME-1500 clean solder paste mis-printed PCB?
A2: Yes, it can by using a pcb holding jig.

Q3: Is SME-1500 safety?
A3: Yes, it is, it driven by compressed-air, not using electric power, so both solvent like alchol ,IPA and aqueous liquid can be use in this machne to clean solder paste stencil.

Q4: Can this machine clean red glue printing stencil?
A4: For thickness 0.1~0.3mm red glue stencil, SME-1500 can clean it very well; but for 3mm thickness cooper red glue stencil and plastic red glue stencil, cleaning result is not so good, especially the little holes. We recommend to use our SME-800 electric stencil cleaning machine, it is more powerful and many customers chose our SME-800 to clean thick red glue cooper stencil for its good cleaning performance.

Stencil cleaning comparison beofore and after cleaning:
LED Solder Paste Printing Stencil 1500*1500mm Big Size Stencil Auto Cleaning Machine 0


LED Solder Paste Printing Stencil 1500*1500mm Big Size Stencil Auto Cleaning Machine 1
