Home > products > Stencil Cleaning Machine > 40L*2 Dual Stencil Cleaning Machine 480kg Weight 2 Stencils Cleaner For Solder Paste And Red Glue At The Same Time

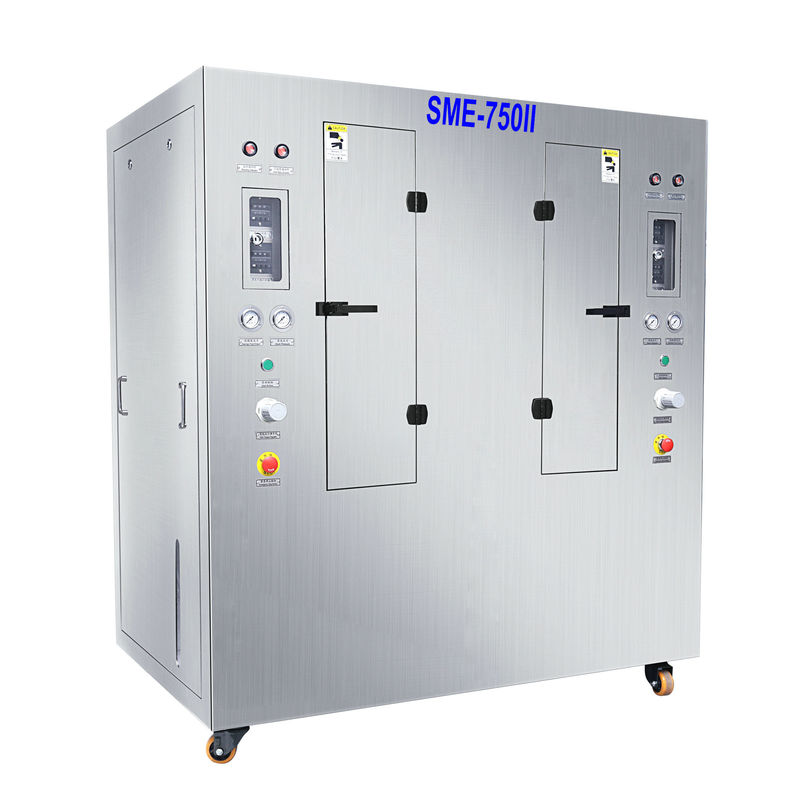

40L*2 Dual Stencil Cleaning Machine 480kg Weight 2 Stencils Cleaner For Solder Paste And Red Glue At The Same Time

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-750II

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 1800*1260*2100 mm(L*W*H)

Delivery Time: 25~30 days

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Supply Ability: 300 sets per year

Get Best Price
Product Details
High Light:

dual 600L Stencil Cleaning Machine

,

480kg Stencil Cleaning Machine

,

dual 600L solder paste printer machine

Material:
SUS304 Stainless Steel
Stencil Size:
L750*W750*T40mm As Max *2PCS
Liquid Tank Capacity:
40L* 2PCS
Wash Time:
3~5min
Blow Dry Time:
3~5min
Compressed-air Supply:
0.5~0.7Mpa,400~600L/min*2 PCS
Wash Type:
2 Rods 360° Rotation Spray Liquid Wash
Filter:
1mm/100um/1um
Machine Size:
L1500xW960xH1700mm
Machine Weight:
480kg
Material:
SUS304 Stainless Steel
Stencil Size:
L750*W750*T40mm As Max *2PCS
Liquid Tank Capacity:
40L* 2PCS
Wash Time:
3~5min
Blow Dry Time:
3~5min
Compressed-air Supply:
0.5~0.7Mpa,400~600L/min*2 PCS
Wash Type:
2 Rods 360° Rotation Spray Liquid Wash
Filter:
1mm/100um/1um
Machine Size:
L1500xW960xH1700mm
Machine Weight:
480kg
Product Description

  Do you want to clean 2 stencils in one machine at the same time? Do you want to seperater solder paste stencil and red glue stencils to avoid contamination? Do you want to use one machine 2 independent cleaning unit for Pb and Pb-free solder paste?

  SHENHUA is a leading smt stencil cleaning machine manufacturer in China. We make pneumatic spray clean smt stencil celaner, electric spray smt stencil cleaning machine and ultrasonic smt stencil cleaner. We've installed over 800 sets in domestic and overseas customer's factories and sold about 100 sets cleaning machine in 2020.

  40L*2 Dual Stencil Cleaning Machine 480kg Weight 2 Stencils Cleaner For Solder Paste And Red Glue At The Same Time is our standard stencil cleaning machine.



  It has totally 2 same SME-750 machine device which can clean 2 stencils at the same time. You can use one side to clean solder paste stencil and the other side to clean red glue stencil. SME-750II is popular used to clean SMT solder paste or red glue stencil. Famous pneumatic parts, strictly produce process, patented rotation spray rods guarantee you a high quality stencil cleaning machine.



  To clean solder paste stencil is very easy for this machine, you can also use it to clean red glue stencil. It make your cleaning process safe, easy, cost down and efficient.


  Both solvent and water-based clean liquid can be use in SME-750II. Cleaning result is the same-100% clean. We provide high quality machines!

Machine Features:

1. SUS 304 structure, Acid and Alkali corrosion resistance, 10 years lifespan.
2. Only driven by compressed air, no use electric power at all.
3. One button easy operation, clean and dry complete automatically.
4. Patent 360° rotation spray rods on both sides, ensure good cleaning quality and stable stencil tension.
5. Liquid recycle use, low consumption.
6. Inner-lock safety door and safety valve, once open, machine will be stopped immediately.
7. 3-level precise liquid filtering system. Liquid used repeatedly.
8. Super well-known Pneumatic parts from all over the word manufactures.
9. Modular design, easy maintenance.

Machine Spec:

Item SME-750II spec
Max stencil size L750 x W750 x H40(mm)*2PCS
Liquid tank 40L*2PCS
Clean time 2~5min
Dry time 2~5min
Compressed air pressure 0.5~0.7Mpa
Air flow rate 400~600L/min*2PCS
Clean method 360°rotat spray clean + compressed air blow dry
Filter system 20um/5um/1um, 3 level
Machine size L1500 x W960 x H1700(mm)
Machine weight 480KG

Other accessories , please discuss with us in details.

Customer Question & Answer

Ask something for more details
Q1: Can SME-750II clean stencil without frame?
A1: Yes, it can, we need a stencil hold jig for this kind of stencil without frame.

Q2: Can SME-750II clean solder paste mis-printed PCB?
A2: Yes, it can by using a pcb holding jig.

Q3: Is SME-750II safety?
A3: Yes, it is, it driven by compressed-air, not using electric power, so both solvent like alchol ,IPA and aqueous liquid can be use in this machne to clean solder paste stencil.

Q4: Can this machine clean red glue printing stencil?
A4: For thickness 0.1~0.3mm red glue stencil, SME-750 can clean it very well; but for 3mm thickness cooper red glue stencil and plastic red glue stencil, cleaning result is not so good, especially the little holes. We recommend to use our SME-800 electric stencil cleaning machine, it is more powerful and many customers chose our SME-800 to clean thick red glue cooper stencil for its good cleaning performance.

Stencil cleaning comparison beofore and after cleaning:
40L*2 Dual Stencil Cleaning Machine 480kg Weight 2 Stencils Cleaner For Solder Paste And Red Glue At The Same Time 0


40L*2 Dual Stencil Cleaning Machine 480kg Weight 2 Stencils Cleaner For Solder Paste And Red Glue At The Same Time 1
