Product Details
Place of Origin: Dongguan, China
Brand Name: SHENHUA
Certification: CE,UL
Model Number: SME-750II
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Vacuum +plywood case package, case size: 1800*1260*2100 mm(L*W*H)
Delivery Time: 25~30 days
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Supply Ability: 300 sets per year
Material: |
SUS304 Stainless Steel |
Stencil Size: |
L750*W750*T40mm As Max *2PCS |
Liquid Tank Capacity: |
40L* 2PCS |
Wash Time: |
3~5min |
Blow Dry Time: |
3~5min |
Compressed-air Supply: |
0.5~0.7Mpa,400~600L/min*2 PCS |
Wash Type: |
2 Rods 360° Rotation Spray Liquid Wash |
Filter: |
1mm/100um/1um |
Machine Size: |
L1500xW960xH1700mm |
Machine Weight: |
480kg |
Material: |
SUS304 Stainless Steel |
Stencil Size: |
L750*W750*T40mm As Max *2PCS |
Liquid Tank Capacity: |
40L* 2PCS |
Wash Time: |
3~5min |
Blow Dry Time: |
3~5min |
Compressed-air Supply: |
0.5~0.7Mpa,400~600L/min*2 PCS |
Wash Type: |
2 Rods 360° Rotation Spray Liquid Wash |
Filter: |
1mm/100um/1um |
Machine Size: |
L1500xW960xH1700mm |
Machine Weight: |
480kg |

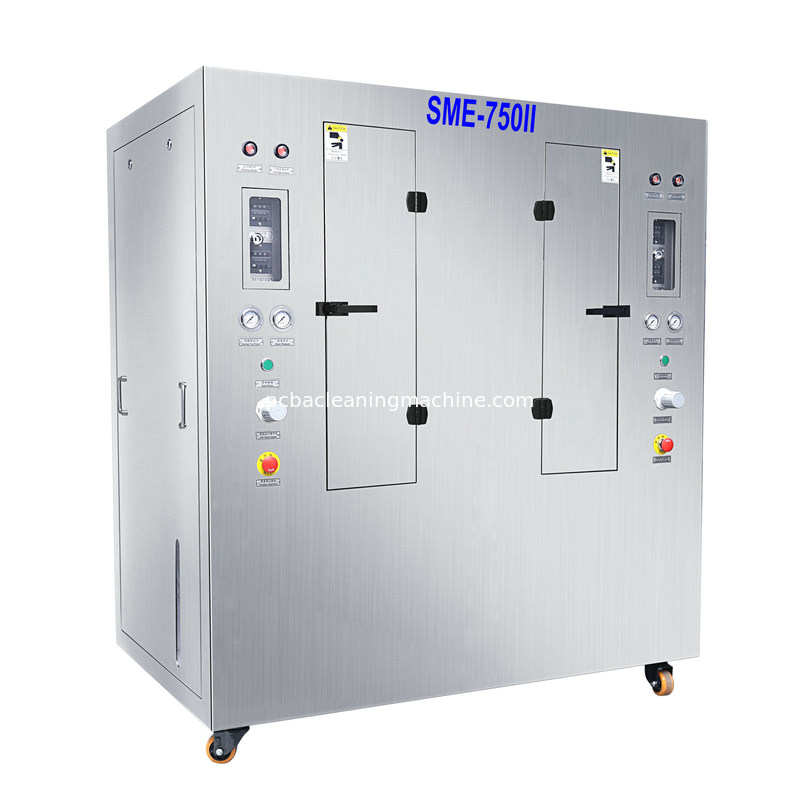

Pneumatic 40L alcohol IPA Stencil Cleaning Machine SME-750 Automatic Stencil Cleaner.Double cleaning cabinet pneumatic stencil cleaning machine for printed stencil and mis-printed PCB is the machine which can clean 2 diffirent stencils at the same time.
SME-750II has totally 2 same SME-750 machine device which can clean 2 stencils at the same time.
One cabinet clean solder paste stencil and the other cabinet clean red glue stencil or one cabinet clean Pb solder paste and the other cabinet clean Pb-free solder paste.
You can use one side to clean solder paste stencil and the other side to clean red glue stencil.
SME-750II is popular used to clean SMT solder paste or red glue stencil. Famous pneumatic parts, strictly produce process, patented rotation spray rods guarantee you a high quality stencil cleaning machine.
To clean solder paste stencil is very easy for this machine, you can also use it to clean red glue stencil. It make your cleaning process safe, easy, cost down and efficient.
Both solvent and water-based clean liquid can be use in SME-750II. Cleaning result is the same-100% clean. We provide high quality machines!
Machine Features:
1. 2 independent control cleaning system, clean 2 stencils at the same.
2. Only driven by compressed air, no use electric power at all.
3. One button easy operation, clean and dry complete automatically.
4. Patent 360° rotation spray rods on both sides, ensure good cleaning quality and stable stencil tension.
5. Liquid recycle use, low consumption.
6. Inner-lock safety door and safety valve, once open, machine will be stopped immediately.

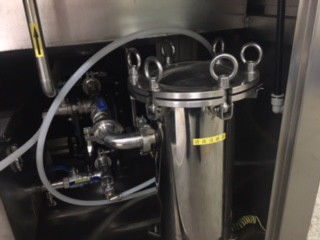

7. 3-level precise liquid filtering system. Liquid used repeatedly.
8. Super well-known Pneumatic parts from all over the word manufactures.
9. Modular design, easy maintenance.
Machine Spec:
| Item | SME-750II spec |
| Max stencil size | L750 x W750 x H40(mm)*2PCS |
| Liquid tank | 40L*2PCS |
| Clean time | 2~5min |
| Dry time | 2~5min |
| Compressed air pressure | 0.5~0.7Mpa |
| Air flow rate | 400~600L/min*2PCS |
| Clean method | 360°rotat spray clean + compressed air blow dry |
| Filter system | 20um/5um/1um, 3 level |
| Machine size | L1500 x W960 x H1700(mm) |
| Machine weight | 480KG |
Other accessories , please discuss with us in details.
