Product Details
Place of Origin: Guangdong, China
Brand Name: SHENHUA
Certification: CE,UL
Model Number: SME-6300L
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Vacuum +plywood case package, case size: 7200*2200*2200 mm(L*W*H)
Delivery Time: 60~80days
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Supply Ability: 100 sets per Year
Material: |
SUS304 Stainless Steel |
Glasses Basket: |
L400*W500*T100mm As Max |
Conveyor Net Width: |
500mm |
Conveyor Speed: |
0.1~1.5m/min |
Conveyor Direction: |
Left To Right |
DI Water Amount: |
500~1000L/H |
Air Exhaust Amount: |
42m3/H |
DI Water Resistivity Range: |
0~18MΩ |
Compressed-air Supply: |
0.5Mpa, 200~400L/min |
Power Supply:: |
AC380V, 3P, 50/60Hz,110KW |
Machine Size: |
5120*1650*1650( L*W*H) Mm |
Machine Weight: |
2600KG |
Material: |
SUS304 Stainless Steel |
Glasses Basket: |
L400*W500*T100mm As Max |
Conveyor Net Width: |
500mm |
Conveyor Speed: |
0.1~1.5m/min |
Conveyor Direction: |
Left To Right |
DI Water Amount: |
500~1000L/H |
Air Exhaust Amount: |
42m3/H |
DI Water Resistivity Range: |
0~18MΩ |
Compressed-air Supply: |
0.5Mpa, 200~400L/min |
Power Supply:: |
AC380V, 3P, 50/60Hz,110KW |
Machine Size: |
5120*1650*1650( L*W*H) Mm |
Machine Weight: |
2600KG |
Shenhua is Beijing Universal Resort 3D glasses cleaning machine supplier.

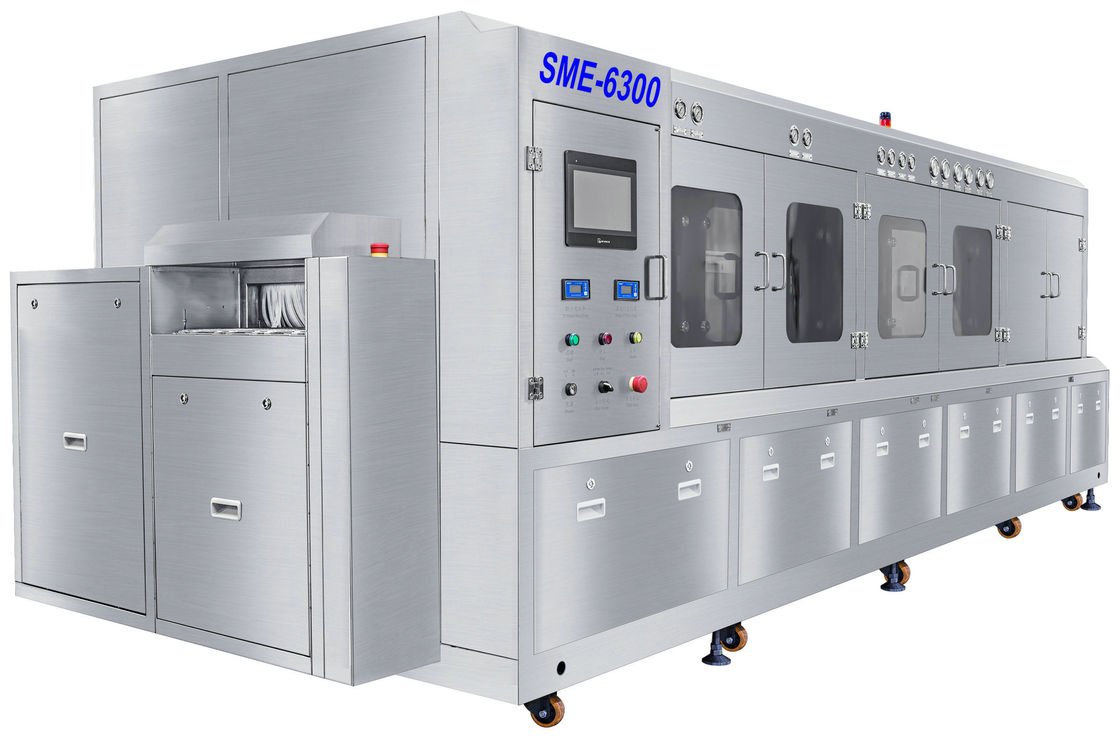

SME-6300L is a SUS304 stainless steel material 3D glasses spray cleaning system for word wide famous theme park and studio.
Specially design to clean 3D glasses used in amusement park, theme park ,cinema... This machine is very high efficient,It can clean 1500~1800 pcs of 3D glasses in our hour. The galsses are ver clean and dry, make your 3D glasses use repeatedly and rapidly.
Hot DI water spray wash and powerful hot compressed air dry, just only 20minutes,you can use fresh 3D glasses again.
Pre-wash+Wash+ Rinse+Final rinse+ Air blow dry1~3+ Hot air dry1+ Hot air dry2 automatic working process.
Our advanced spray cleaning technology, the system has following advantages:
1. 3D glasses batch cleaning system.
2. Heavy flow DI water spray wash system.Very good clean result.
3. Wash sections + DI water rinse section+ Air blow section1~3 +2 hot air dry sections.
4. DI water supply automatically, post-section DI water overflow to the previous-section to renew DI water.
5. Up/down spary system on wash and rinse sections.
6. DI water spray pressure can be adjusted for dirrerent cleaning requirements.
7. Standard equipped with Resistivity monitoring system, resistivity range 0~18 MΩ.
8. 3 Air knives blow dry+ 2 section hot air dry system. Very good dry result.
9. SUS304 stainless flat conveyor net system.
10. PLC control system, English operation interface, easy operation.
11.Many optional functions avalible.
12. Total SUS304 structure, Acid and Alkali corrosion resistance.
Machine Spec:
| S/N | Item | SME-6300L Spec |
| 1 | conyeyor net | 500mm |
| 2 | conveyor speed | 0.1~1.5m/min |
| 3 | conveyor height | 900±50mm |
| 4 | conveyor direction | Left to Right |
| 5 | glass bakset size | L400*W500mm as max |
| 6 | glass basket height | 100mm as max |
| 7 | wash tank capacity | 120L |
| 8 | rinse tank capacity | 30L+30L |
| 9 | DI water consumption | 400~800L/H |
| 10 | exhausted air | 40m³ |
| 11 | electric control | PLC+TP |
| 12 | Resistivity range | 0~18MΩ |
| 13 | PH range | none |
| 14 | air supply | 0.5Mpa |
| 15 | power supply | AC380V,50/60HZ, 3P,110KW |
| 16 | machine size | L5120*W1650*H1650mm |
| 17 | machine weight | 2600KG |
Q1: which place does this macine use?
A1: Large amusement park,theme park,cinema,museum to gurantee the safety of audience.
Q2: Any company is using this machine?
A2: Yes, Beijing Universal park is one of our customers who using it.
Q3: Does 3D glasses very clean and dry after coming out ?
A3: Yes, we use several section to wash and several section to blow dry. It is totally dry after coming from the machine.
