SUS304 Stainless Steel Frame Spray Wash Mini LED And Micro LED PCB Flux With In Line Cleaning System

Product Details

Place of Origin: Guangdong, China

Brand Name: SHENHUA

Certification: CE,ISO,UL

Model Number: SME-6140

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 7200*2200*2200 mm(L*W*H)

Delivery Time: 60~80days

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Supply Ability: 100 sets per Year

Get Best Price
Product Details
High Light:

SUS304 ultrasonic stencil cleaner

,

3D glasses ultrasonic stencil cleaner

,

SUS304 stencil cleaner machine

Material:
SUS304 Stainless Steel
Glasses Basket:
L400*W600*T100mm As Max
Conveyor Net Width:
600mm
Conveyor Speed:
0.1~1.5m/min
Conveyor Direction:
Left To Right
DI Water Amount:
500~1000L/H
Air Exhaust Amount:
42m³/H
DI Water Resistivity Range:
0~18MΩ
Compressed-air Supply:
0.5Mpa, 200~400L/min
Power Supply::
AC380V, 3P, 50/60Hz,110KW
Machine Size:
5120*1650*1650( L*W*H) Mm
Machine Weight:
2600KG
Material:
SUS304 Stainless Steel
Glasses Basket:
L400*W600*T100mm As Max
Conveyor Net Width:
600mm
Conveyor Speed:
0.1~1.5m/min
Conveyor Direction:
Left To Right
DI Water Amount:
500~1000L/H
Air Exhaust Amount:
42m³/H
DI Water Resistivity Range:
0~18MΩ
Compressed-air Supply:
0.5Mpa, 200~400L/min
Power Supply::
AC380V, 3P, 50/60Hz,110KW
Machine Size:
5120*1650*1650( L*W*H) Mm
Machine Weight:
2600KG
Product Description

Product Description

SME-6140 is a SUS304 Stainless Steel Frame Spray Wash Mini LED And Micro LED PCB Flux With In Line Cleaning SystemIt is mainly used to clean flux on Mini LED and micro LED PCBA.



Excellent cleaning performance: flux, solder balls, dusts, organic and inorganic contaminations.



Functional cleaning section and  process: Pre-wash+Wash+Chemical isolation+ Rinse+Final rinse+ Air blow dry1~3+ Hot air dry1+ Hot air dry2.


Our advanced spray cleaning technology, the system has following advantages:


1. Batch in line cleaning system.

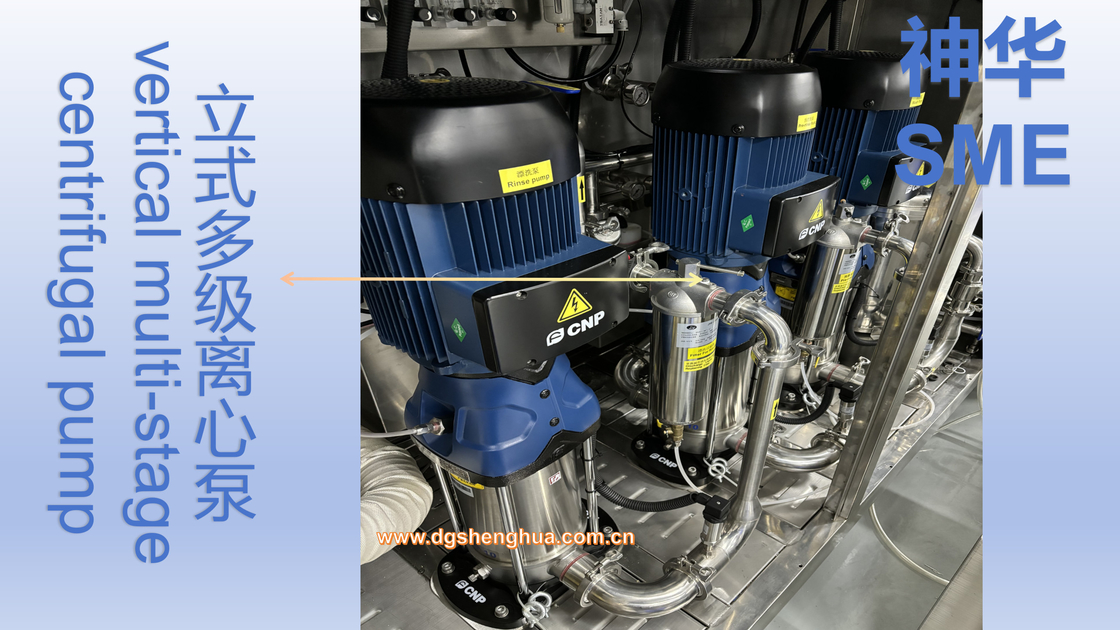

2. Heavy flowliquid wash and  DI water spray rinse system.Very good clean result.
3. 3 liquid wash sections + 3 DI water rinse section+ Air blow section +2 hot air dry sections.
4. DI water supply automatically, post-section DI water overflow to the previous-section to renew DI water.
5. Up/down  spary system on wash and rinse sections.

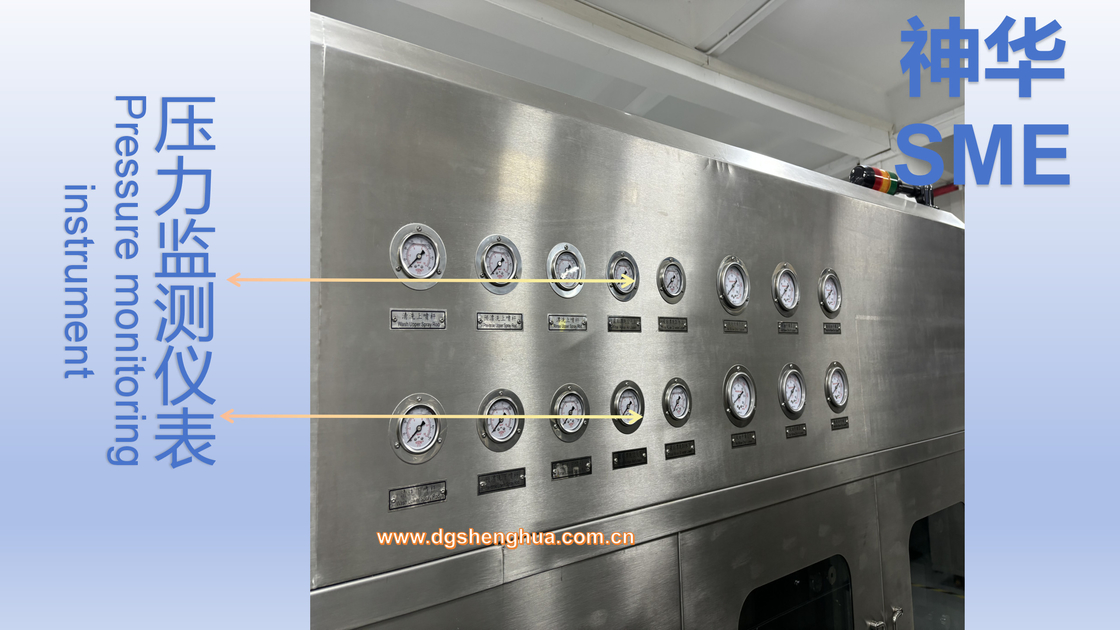

6. DI water spray pressure can be adjusted for dirrerent cleaning requirements.
7. Standard equipped with Resistivity monitoring system, resistivity range 0~18 MΩ.

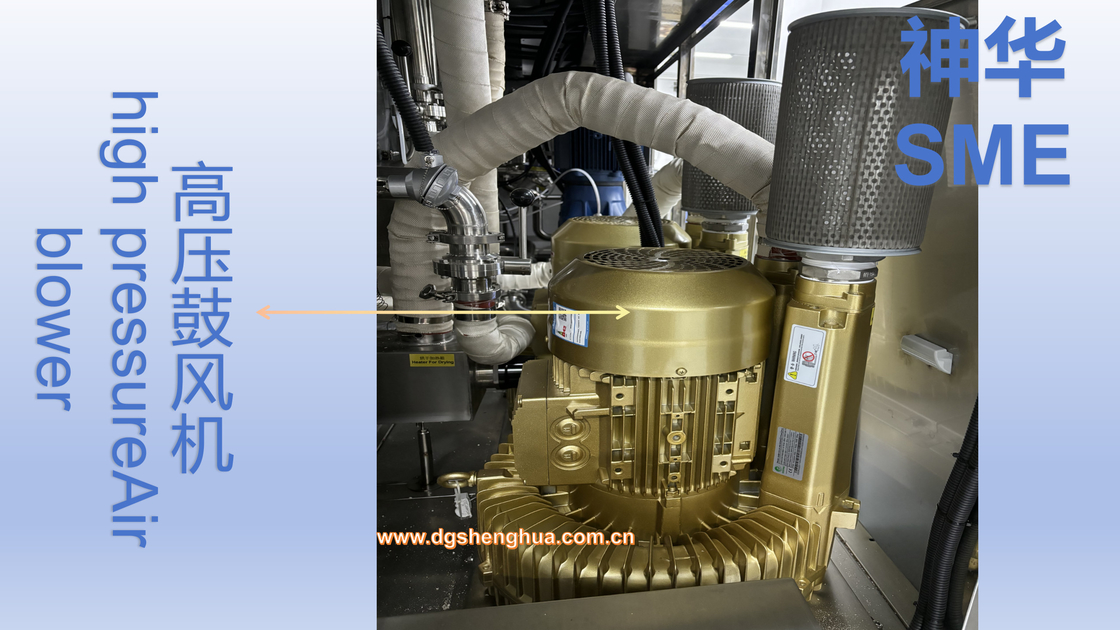

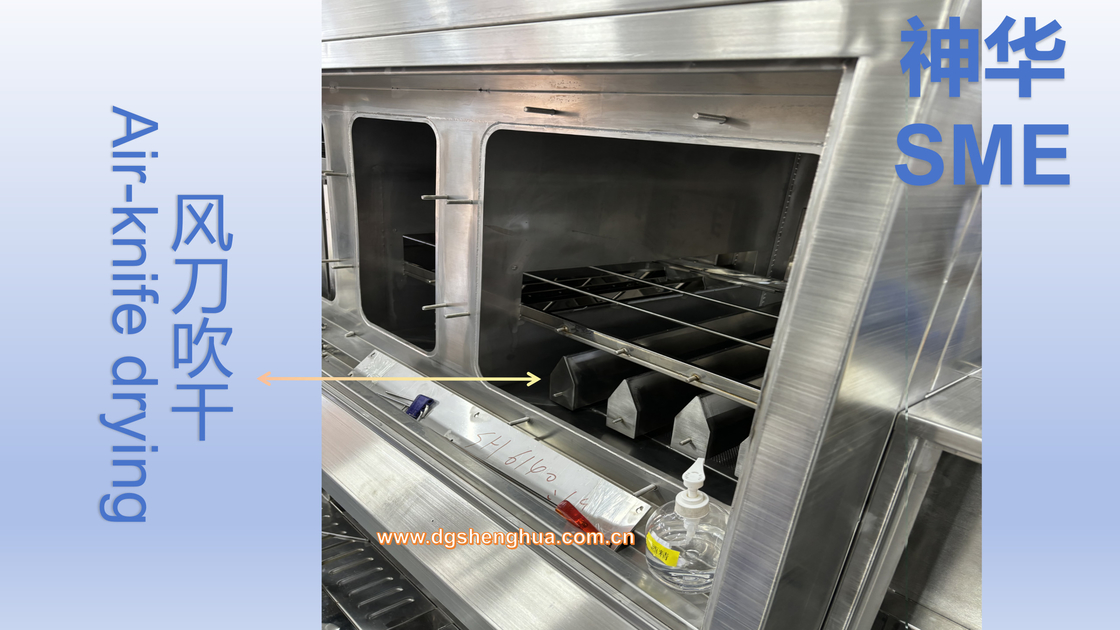

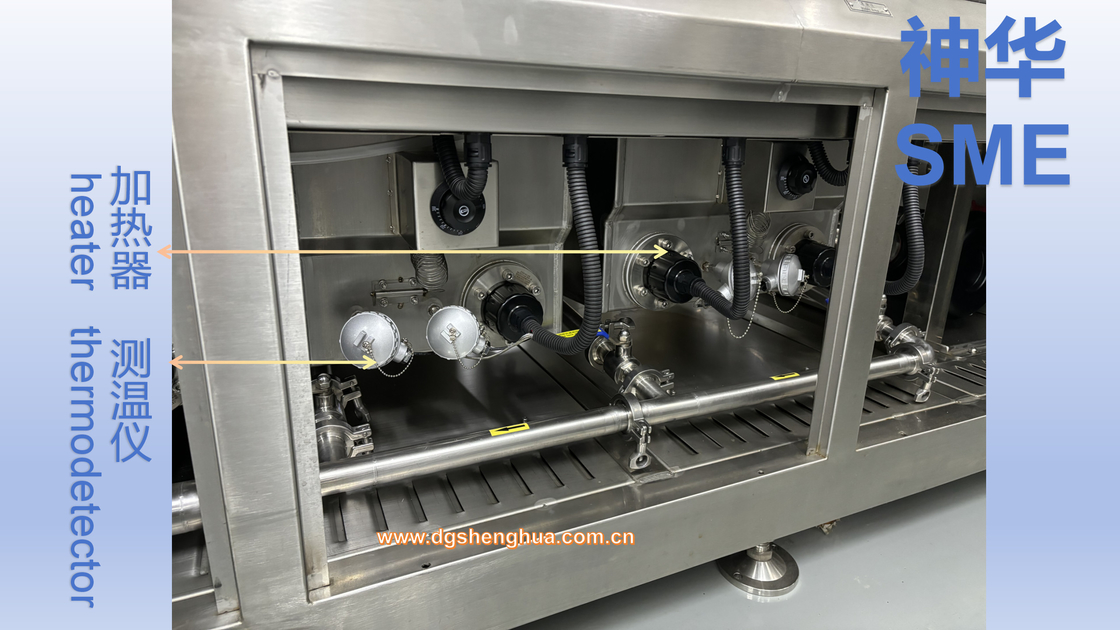

8. 3 Air knives blow dry+ 2 section hot air dry system. Very good dry result.

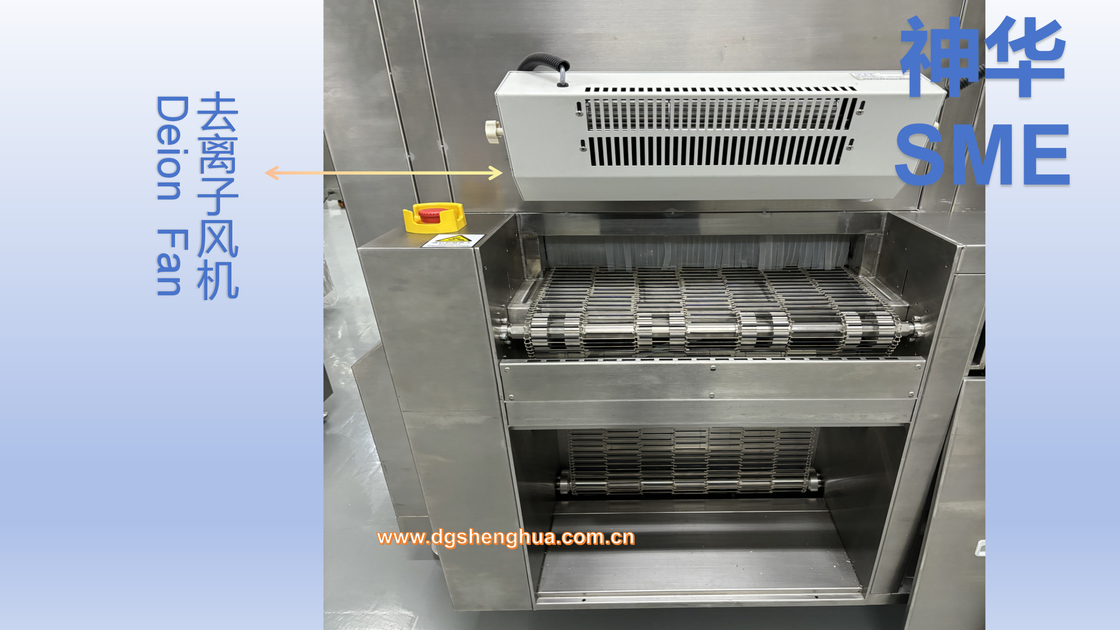

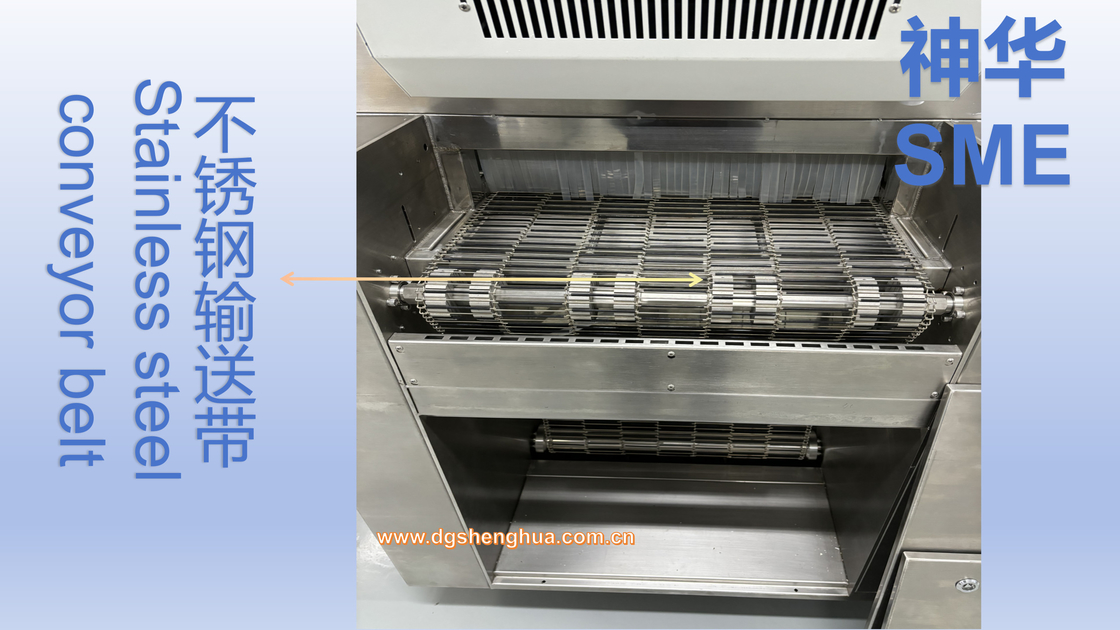

9. SUS304 stainless flat conveyor net system.

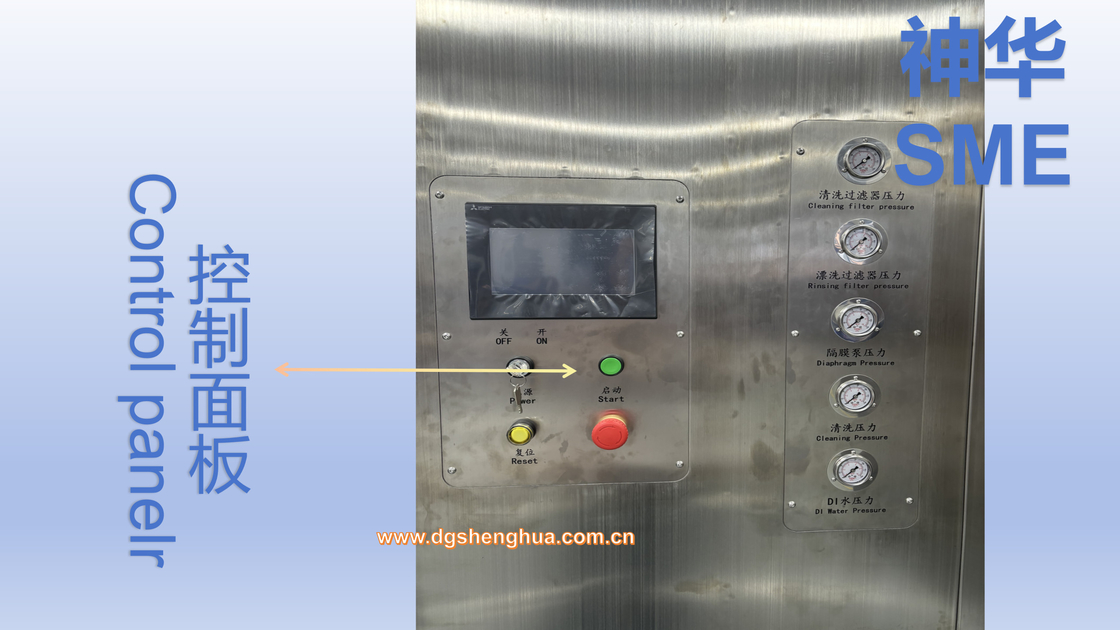

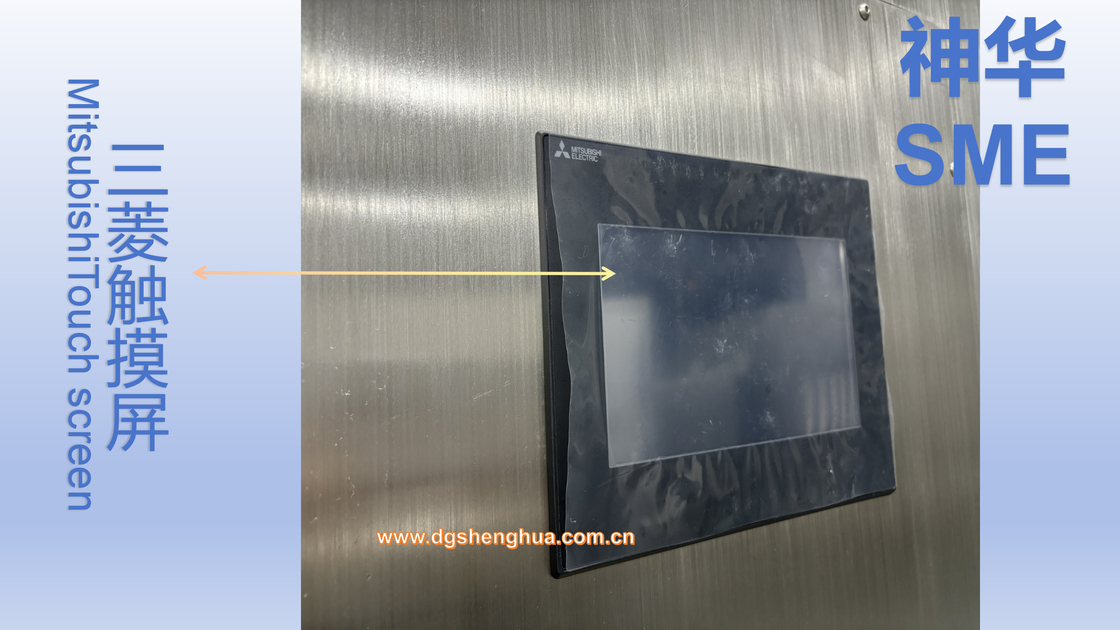

10. PLC control system, English operation interface, easy operation.
11.Many optional functions avalible.

12. Total SUS304 structure, Acid and Alkali corrosion resistance.

Machine Spec:



S/N Item SME-6140 Spec
1 conyeyor net  600mm
2 conveyor speed 0.1~1.5m/min
3 conveyor height 900±50mm
4 conveyor direction Left to Right
5 glass bakset size L400*W600mm as max
6 glass basket height 100mm as max
7 wash tank capacity 120L
8 rinse tank capacity 40L+60L
9 DI water consumption 400~800L/H
10 exhausted air 36m³

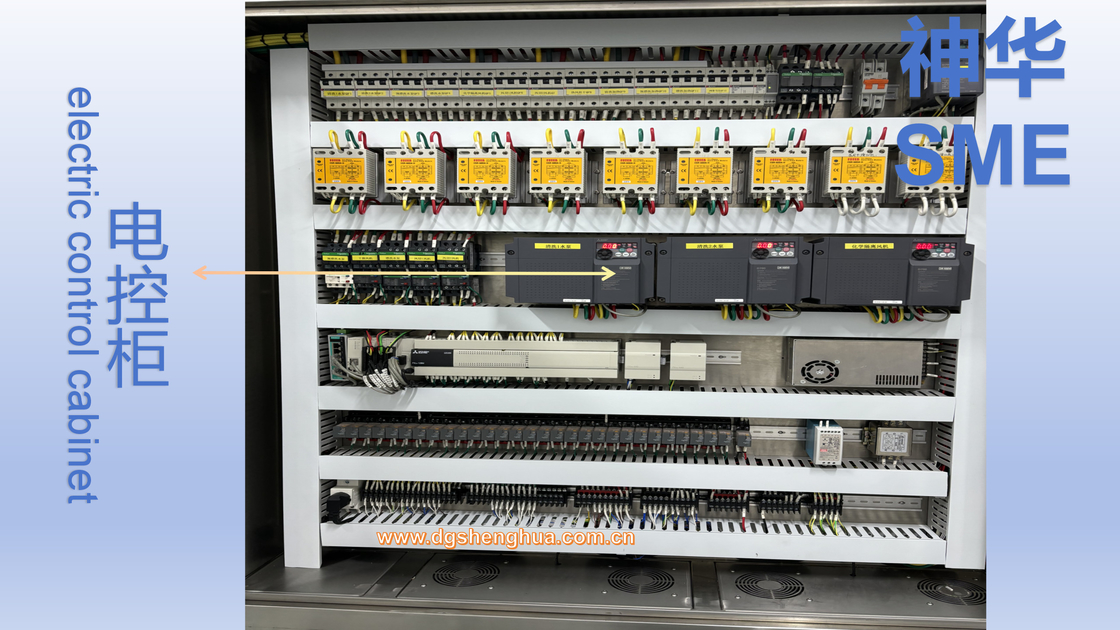

11 electric control PLC+TP
12 Resistivity range 0~18MΩ
13 PH range none
14 air supply 0.5Mpa
15 power supply AC380V,50/60HZ, 3P,80KW
16 machine size L4000*W1750*H1850mm
17 machine weight 2600KG



Customer Question & Answer

Q1: what kind of PCBA does this macine use?

A1: Mini LED and micro LED.



Q2: Any company is using this machine?

A2: Yes, many Mini LED companies like Foxconn, ZHONGQI are using it..



Q3: Does Mini LED PCBA very clean and dry after coming out ?

A3: Yes, but we suggest customer use bake oven to make all streame out.
