DI water PCBA in line spray cleaning system for water soluble flux PCBA

Product Details

Place of Origin: Guangdong, China

Brand Name: SHENHUA

Certification: CE,ISO,UL

Model Number: SME-6100

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 7200*2200*2200 mm(L*W*H)

Delivery Time: 50~60days

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Supply Ability: 100 sets per Year

Get Best Price
Product Details
High Light:

200L di water machine

,

SME THT di water machine

,

THT sme machine

Material:
SUS304 Stainless Steel
PCBA Size:
L400*W600*T100mm As Max
Conveyor Net Width:
500mm
Conveyor Speed:
0.1~1.5m/min
Conveyor Direction:
Left To Right
DI Water Amount:
400~800L/H
Air Exhaust Amount:
36m³/H
DI Water Resistivity Range:
0~18MΩ
Compressed-air Supply:
0.5Mpa, 200~400L/min
Power Supply::
AC380V, 3P, 50/60Hz,110KW
Machine Size:
4000*1650*1650( L*W*H) Mm
Machine Weight:
2100KG
Material:
SUS304 Stainless Steel
PCBA Size:
L400*W600*T100mm As Max
Conveyor Net Width:
500mm
Conveyor Speed:
0.1~1.5m/min
Conveyor Direction:
Left To Right
DI Water Amount:
400~800L/H
Air Exhaust Amount:
36m³/H
DI Water Resistivity Range:
0~18MΩ
Compressed-air Supply:
0.5Mpa, 200~400L/min
Power Supply::
AC380V, 3P, 50/60Hz,110KW
Machine Size:
4000*1650*1650( L*W*H) Mm
Machine Weight:
2100KG
Product Description

Overseas agent wanted!

SME, the leading spray cleaning technology company in China. We have more than 1400 customers and have installed more than 400 sets in customers side by 2020.

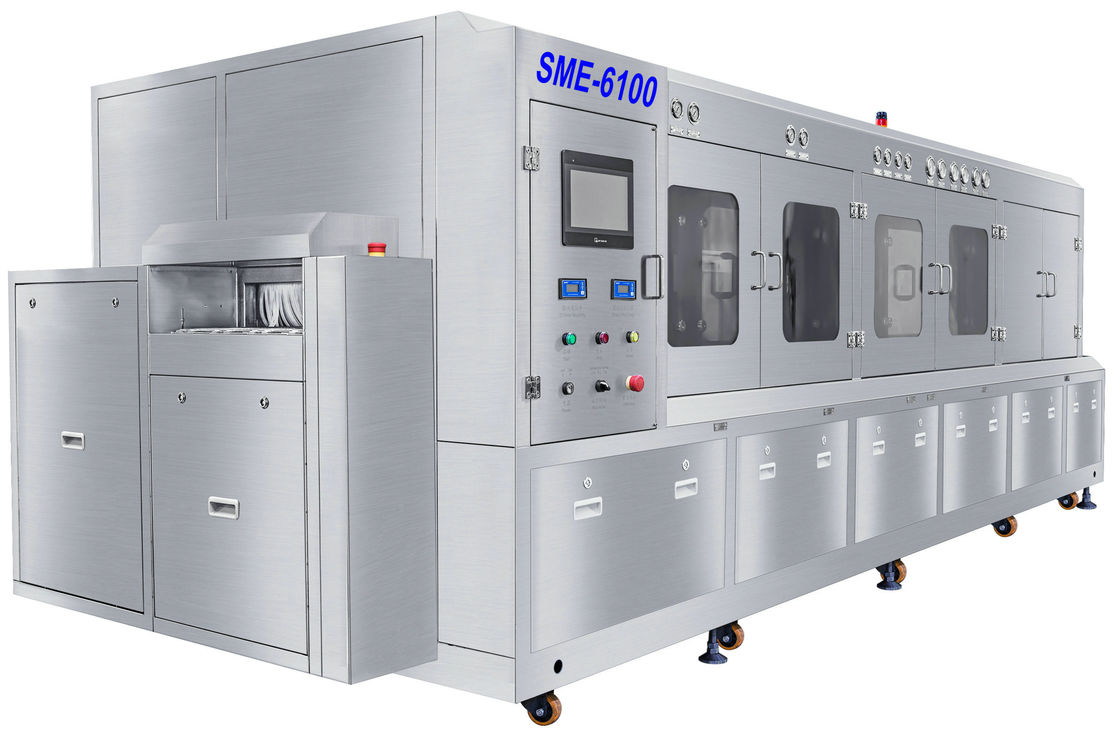

As a Compat high performance and low cost DI water in line PCBA spray cleaning system for water soluble flux, SME-6100 PCBA deflux DI water in line wash system. SME-6100 mainly used to clean water-soluble solder paste and solder balls on PCBA.





Functional section: Pre-wash+Wash+ Rinse+Final rinse+ Air blow dry+ Hot air dry.


SME-6100 advantages:


1. Big quantity PCBA in line cleaning system.
2. Thoroughly clean water-sular solder paste flux on SMT or THT PCBA after welding.
3. DI water wash sections + DI water rinse section+ Air blow section + hot air dry sections.
4. Fresh DI water supply automatically, post-section DI water overflow to the previous-section to renew DI water
5. Up/down  spary system on wash and rinse sections.
6. DI water spray pressure can be adjusted for dirrerent PCBA cleaning requirements.
7. Standard equipped with Resistivity monitoring system, resistivity range 0~18 MΩ.
8. Air knives blow dry section+ hot air dry section.
9. SUS304 stainless PCB flat conveyor net system.
10. PLC control system, English operation interface, easy operation.
11.Many optional functions avalible.

12. Total SUS304 structure, Acid and Alkali corrosion resistance.

Machine Spec:



S/N Item SME-6100 Spec
1 conyeyor net  500mm
2 conveyor speed 0.1~1.5m/min
3 conveyor height 900±50mm
4 conveyor direction Left to Right
5 PCB size L400*W500mm as max
6 PCB height 100mm as max(with component)
7 wash tank capacity 280L
8 rinse tank capacity 40L+30L
9 DI water consumption 400~800L/H
10 exhausted air 36m³
11 electric control PLC+TP
12 Resistivity range 0~18MΩ
13 PH range None
14 air supply 0.5Mpa
15 power supply AC380V,50/60HZ, 3P,80KW
16 machine size L4000*W1650*H1650mm
17 machine weight 2100KG



Customer Question & Answer

Q1: What kind of PCBAs can SME-6100 clean?

A1: Water-soluble solder paste PCBA.



Q2: Can SME-6100 clean PCBA very clean?

A2: Yes, normally we heat DI water to 60℃ and we have up and down 2x8 spray rods with diffirent type of spray nozzles.So it can clean very well, some of our customer are using SME-6100, they like it very much.



Q3: What is the DI water temperature?

A3: DI water can heat to 60℃.



Q4: What is the DI water consumption per hour?

A4: It depends temperature, normally 5~15L/ Hour.



Ask something for more detail

PCB comparison pictures before and after cleaning:
DI water PCBA in line spray cleaning system for water soluble flux PCBA 0


DI water PCBA in line spray cleaning system for water soluble flux PCBA 1
