Product Details
Place of Origin: Guangdong, China
Brand Name: SHENHUA
Certification: CE,ISO,UL
Model Number: SME-6100
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Vacuum +plywood case package, case size: 7200*2200*2200 mm(L*W*H)
Delivery Time: 50~60days
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Supply Ability: 100 sets per Year
Material: |
SUS304 Stainless Steel |
PCBA Size: |
L400*W600*T100mm As Max |
Conveyor Net Width: |
600mm |
Conveyor Speed: |
0.1~1.5m/min |
Conveyor Direction: |
Left To Right |
DI Water Amount: |
400~800L/H |
Air Exhaust Amount: |
36m³/H |
DI Water Resistivity Range: |
0~18MΩ |
Compressed-air Supply: |
0.5Mpa, 200~400L/min |
Power Supply:: |
AC380V, 3P, 50/60Hz,110KW |
Machine Size: |
4000*1750*1650( L*W*H) Mm |
Machine Weight: |
2200KG |
Material: |
SUS304 Stainless Steel |
PCBA Size: |
L400*W600*T100mm As Max |
Conveyor Net Width: |
600mm |
Conveyor Speed: |
0.1~1.5m/min |
Conveyor Direction: |
Left To Right |
DI Water Amount: |
400~800L/H |
Air Exhaust Amount: |
36m³/H |
DI Water Resistivity Range: |
0~18MΩ |
Compressed-air Supply: |
0.5Mpa, 200~400L/min |
Power Supply:: |
AC380V, 3P, 50/60Hz,110KW |
Machine Size: |
4000*1750*1650( L*W*H) Mm |
Machine Weight: |
2200KG |

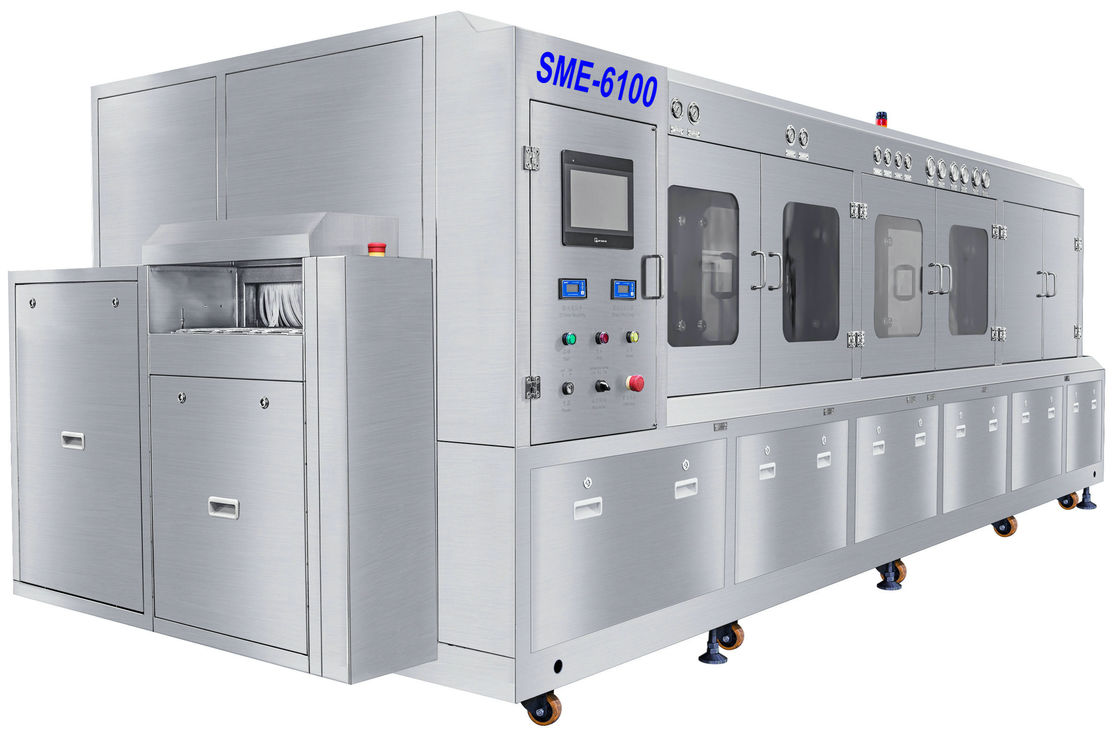

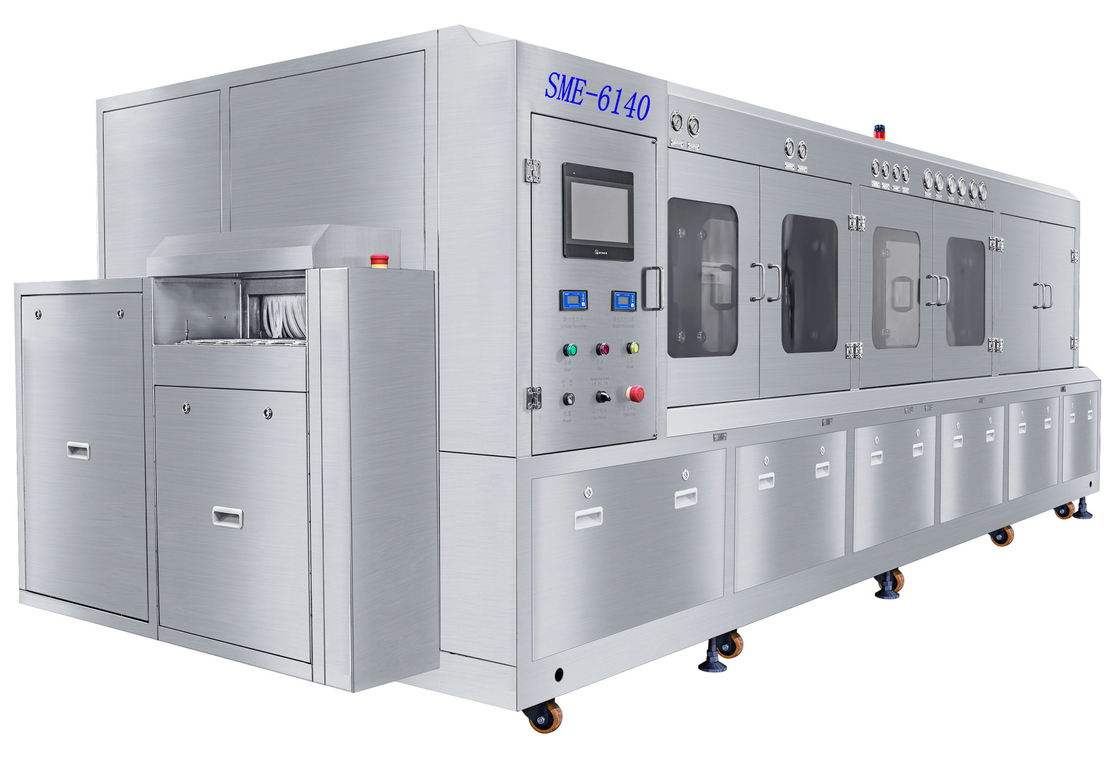

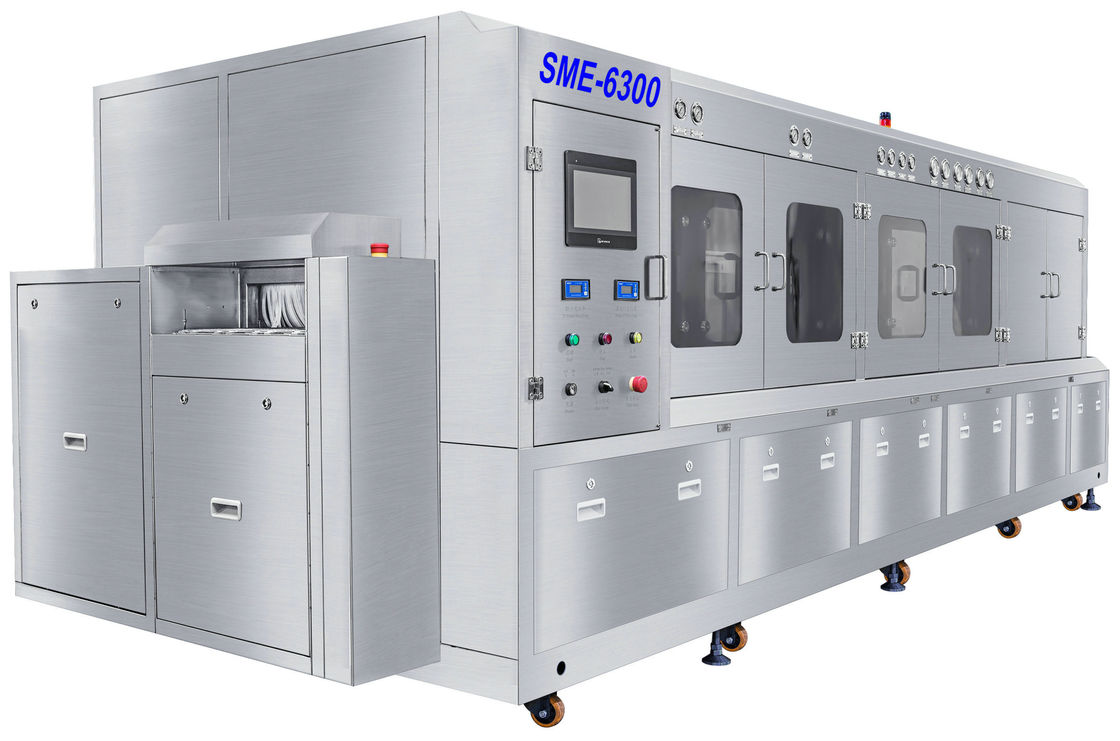

SME-6100 High Performance And Low Cost Water Soluble Flux PCBA In Line Cleaning Machine With CE Approved is specially used to clean water-soluble solder paste PCBA by using DI water with excellent wash performance.
DI water wash process: Pre-wash+Wash+ Rinse+Final rinse+ Air blow dry+ Hot air dry.
SHENHUA new developed spray cleaning technology, the system has following advantages:
1. Big quantity PCBA in line cleaning system.
2. Thoroughly clean water-sular solder paste flux on SMT or THT PCBA after welding.
3. DI water wash sections + DI water rinse section+ Air blow section + hot air dry sections.
4. Fresh DI water supply automatically, post-section DI water overflow to the previous-section to renew DI water.
5. Up/down spary system on wash and rinse sections.
6. DI water spray pressure can be adjusted for dirrerent PCBA cleaning requirements.
7. Standard equipped with Resistivity monitoring system, resistivity range 0~18 MΩ.
8. Air knives blow dry section+ hot air dry section.
9. SUS304 stainless PCB flat conveyor net system.
10. PLC control system, English operation interface, easy operation.
11.Many optional functions avalible.
12. Total SUS304 structure, Acid and Alkali corrosion resistance.
Machine Spec:
| S/N | Item | SME-6100 Spec |
| 1 | conyeyor net | 500mm |
| 2 | conveyor speed | 0.1~1.5m/min |
| 3 | conveyor height | 900±50mm |
| 4 | conveyor direction | Left to Right |
| 5 | PCB size | L400*W500mm as max |
| 6 | PCB height | 100mm as max(with component) |
| 7 | wash tank capacity | 280L |
| 8 | rinse tank capacity | 40L+30L |
| 9 | DI water consumption | 400~1000L/H |
| 10 | exhausted air | 36m³ |
| 11 | electric control | PLC+TP |
| 12 | Resistivity range | 0~18MΩ |
| 13 | PH range | None |
| 14 | air supply | 0.5Mpa |
| 15 | power supply | AC380V,50/60HZ, 3P,80KW |
| 16 | machine size | L4000*W1650*H1650mm |
| 17 | machine weight | 2100KG |
Q1: What kind of PCBAs can SME-6100 clean?
A1: Water-soluble solder paste PCBA.
Q2: Can SME-6100 clean PCBA very clean?
A2: Yes, normally we heat DI water to 60℃ and we have up and down 2x8 spray rods with diffirent type of spray nozzles.So it can clean very well, some of our customer are using SME-6100, they like it very much.
Q3: What is the DI water temperature?
A3: DI water can heat to 60℃.
Q4: What is the DI water consumption per hour?
A4: It depends temperature, normally 5~15L/ Hour.
