High performance liquid wash and DI water rinse no-clean solder paste flux PCBA in line cleaning machine

Product Details

Place of Origin: Guangdong, China

Brand Name: SHENHUA

Certification: CE,ISO,UL

Model Number: SME-6200

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 7200*2200*2200 mm(L*W*H)

Delivery Time: 60~80days

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Supply Ability: 100 sets per Year

Get Best Price
Product Details
High Light:

800L ultrasonic stencil cleaner

,

DI water ultrasonic stencil cleaner

,

800L stencil cleaning machine

Material:
SUS304 Stainless Steel
PCBA Size:
L400*W600*T100mm As Max
Conveyor Net Width:
600mm
Conveyor Speed:
0.1~1.5m/min
Conveyor Direction:
Left To Right
DI Water Amount:
400~800L/H
Air Exhaust Amount:
42m³/H
DI Water Resistivity Range:
0~18MΩ
Compressed-air Supply:
0.5Mpa, 200~400L/min
Power Supply::
AC380V, 3P, 50/60Hz,110KW
Machine Size:
5200*1650*1650( L*W*H) Mm
Machine Weight:
2600KG
Material:
SUS304 Stainless Steel
PCBA Size:
L400*W600*T100mm As Max
Conveyor Net Width:
600mm
Conveyor Speed:
0.1~1.5m/min
Conveyor Direction:
Left To Right
DI Water Amount:
400~800L/H
Air Exhaust Amount:
42m³/H
DI Water Resistivity Range:
0~18MΩ
Compressed-air Supply:
0.5Mpa, 200~400L/min
Power Supply::
AC380V, 3P, 50/60Hz,110KW
Machine Size:
5200*1650*1650( L*W*H) Mm
Machine Weight:
2600KG
Product Description

Overseas agent wanted!!!

Shenhua is a leading spray cleaning technology company in China.

Shenhua set up in 2009.

Shenhua has installed more than 120 sets on line PCBA cleaning machine at local customer's side and more than 10 sets in overseas customers

SME-6200 is a High performance liquid wash and DI water rinse no-clean solder paste flux PCBA in line cleaning machine.

SME-6200 is advanced powerful spray cleaning technology.



Clean range: PCBA flux residuals,soder balls and particles on PCBA, such as: rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations.



Functional process: Pre-wash+Wash+ Chemical isolation+ Pre-rinse+ Rinse+Final rinse+ Air blow dry+ Hot air dry1+ Hot air dry2.


SHENHUA new developed spray cleaning technology, the system has following advantages:


1. Big quantity PCBA in line cleaning system.
2. large amout liquid spray wash method, super wash result. Thoroughly clean water-sular solder paste flux and non-clean solder paste flux on SMT or THT PCBA after welding.
3. Wash sections + DI water rinse section+ Air blow section +2 hot air dry sections.
4. Liquid and fresh DI water supply automatically, post-section DI water overflow to the previous-section to renew DI water.
5. Up/down  spary system on wash and rinse sections.
6. Liquid and DI water spray pressure can be adjusted for dirrerent PCBA cleaning requirements.
7. Standard equipped with Resistivity monitoring system, resistivity range 0~18 MΩ.
8. Air knives blow dry+ 2 section hot air dry system.
9. SUS304 stainless PCB flat conveyor net system.
10. PLC control system, English operation interface, easy operation.
11.Many optional functions avalible.

12. Total SUS304 structure, Acid and Alkali corrosion resistance.

Machine Spec:



S/N Item SME-6200 Spec
1 conyeyor net  600mm
2 conveyor speed 0.1~1.5m/min
3 conveyor height 900±50mm
4 conveyor direction Left to Right
5 PCB size L400*W500mm as max
6 PCB height 100mm as max(with component)
7 wash tank capacity 280L
8 rinse tank capacity 40L+120L
9 DI water consumption 400~1000L/H
10 exhausted air 42m³
11 electric control PLC+TP
12 Resistivity range 0~18MΩ
13 PH range 0~14
14 air supply 0.5Mpa
15 power supply AC380V,50/60HZ, 3P,110KW
16 machine size L63500*W1750*H1650mm
17 machine weight 3100KG



Customer Question & Answer

Q1: What kind of PCBAs can SME-6200 clean?

A1: SME-6200 is a 5200mm long machine, it has one 800mm wash section with 2x8 spray rods. It can clean all PCBAs, for most precise PCBA, you can low down the conveyor speed to 0.2m/min to get excellent cleaning performance. Normally we set it to 0.3~0.4m/min .



Q2: Why is it 120KW?

A2: in wash section, it has 3x12KW heater;in pre-rinse section,it has 1x12KW heater; in Rinse section, it has 1x12KW heater; in hot air dry section ,it has 2x7.5KW heater, and we also have air blowers, electric pumps.



Q3: What is the liquid temperature and DI water temperature?

A3: liquid temperature can heat to 80℃; DI water can heat to 60℃.



Q4: What is the liquid consumption per hour?

A4: It depends on liquid itself and temperature,  we install liquid cool condenser ,normally 5~15L/ Hour.



Ask something for more detail

PCB comparison pictures before and after cleaning:

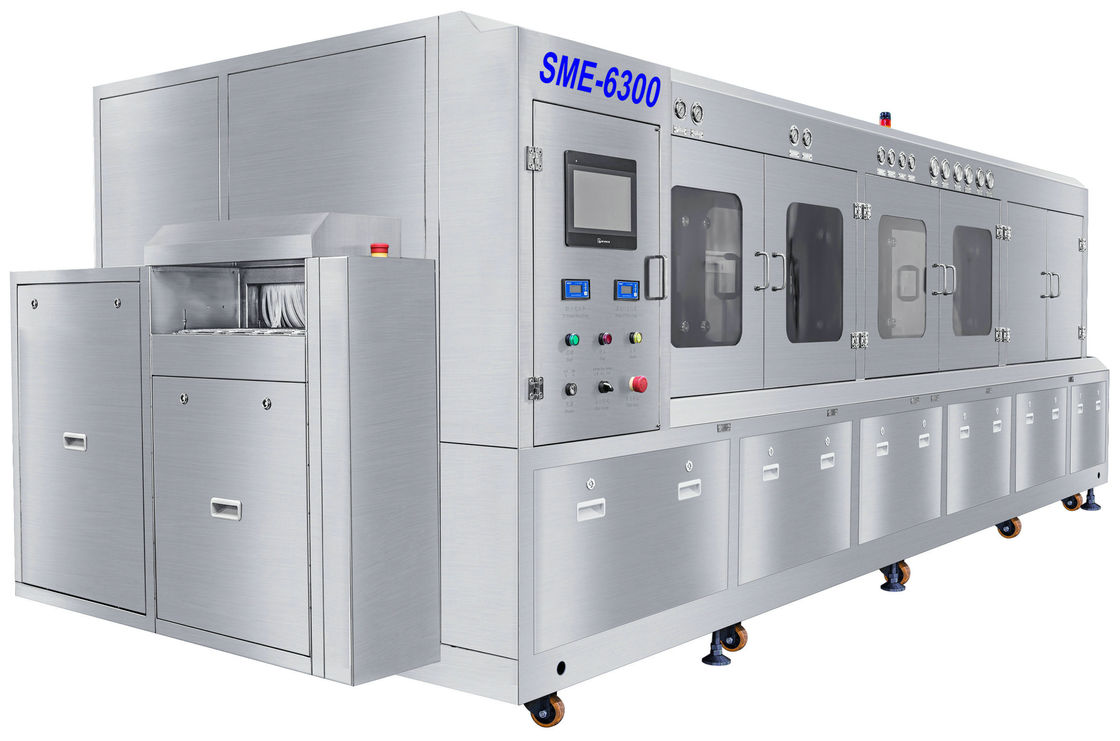

High performance liquid wash and DI water rinse no-clean solder paste flux PCBA in line cleaning machine 0

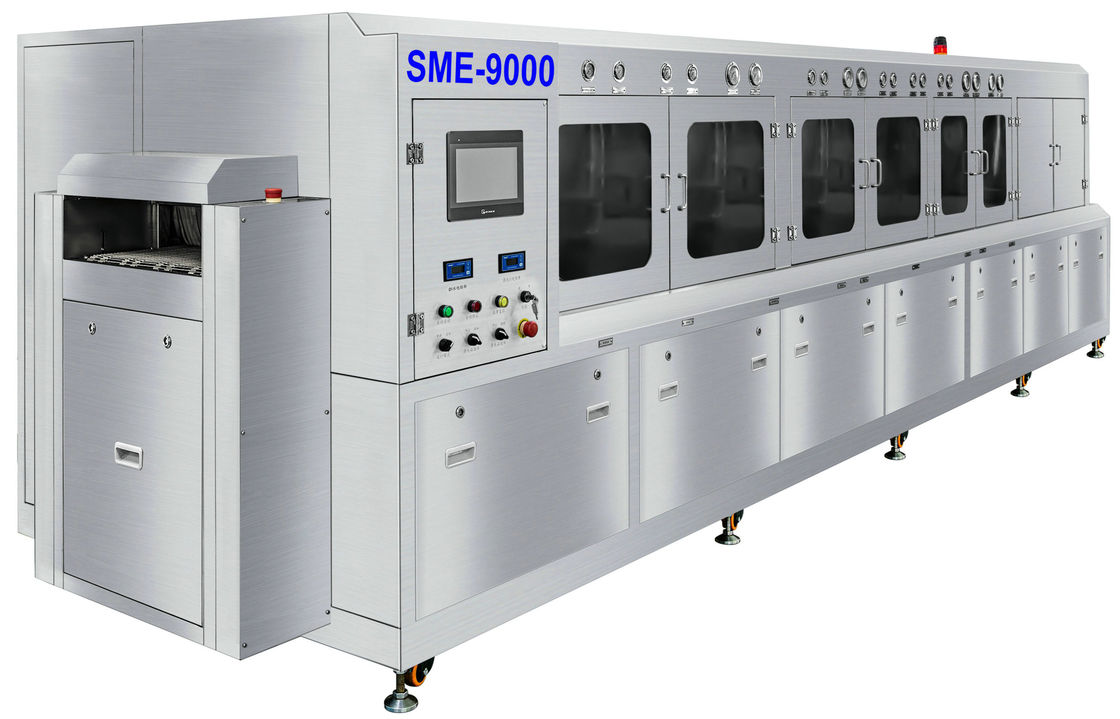

High performance liquid wash and DI water rinse no-clean solder paste flux PCBA in line cleaning machine 1
