| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | SHENHUA |
| Certification: | CE,ISO,UL |
| Model Number: | SME-6600 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Vacuum +plywood case package, case size: 7200*2200*2200 mm(L*W*H) |
| Delivery Time: | 60~80days |
| Payment Terms: | L/C, T/T, D/P, Western Union, Paypal, Money Gram |
| Supply Ability: | 100 sets per Year |
| Material: | SUS304 Stainless Steel | PCBA Size: | L600*W500*T100mm As Max |
|---|---|---|---|
| Conveyor Net Width: | 600mm | Conveyor Speed: | 0.1~1.5m/min |
| Conveyor Direction: | Left To Right | DI Water Amount: | 500~1000L/H |
| Air Exhaust Amount: | 42m³/H | DI Water Resistivity Range: | 0~18MΩ |
| Compressed-air Supply: | 0.5Mpa, 200~400L/min | Power Supply:: | AC380V, 3P, 50/60Hz,150KW |
| Machine Size: | 6600*1650*1650( L*W*H) Mm | Machine Weight: | 3200KG |
| High Light: | deflux PCBA Cleaning Machine,AC380V PCBA Cleaning Machine,deflux electronic cleaning machine |
||

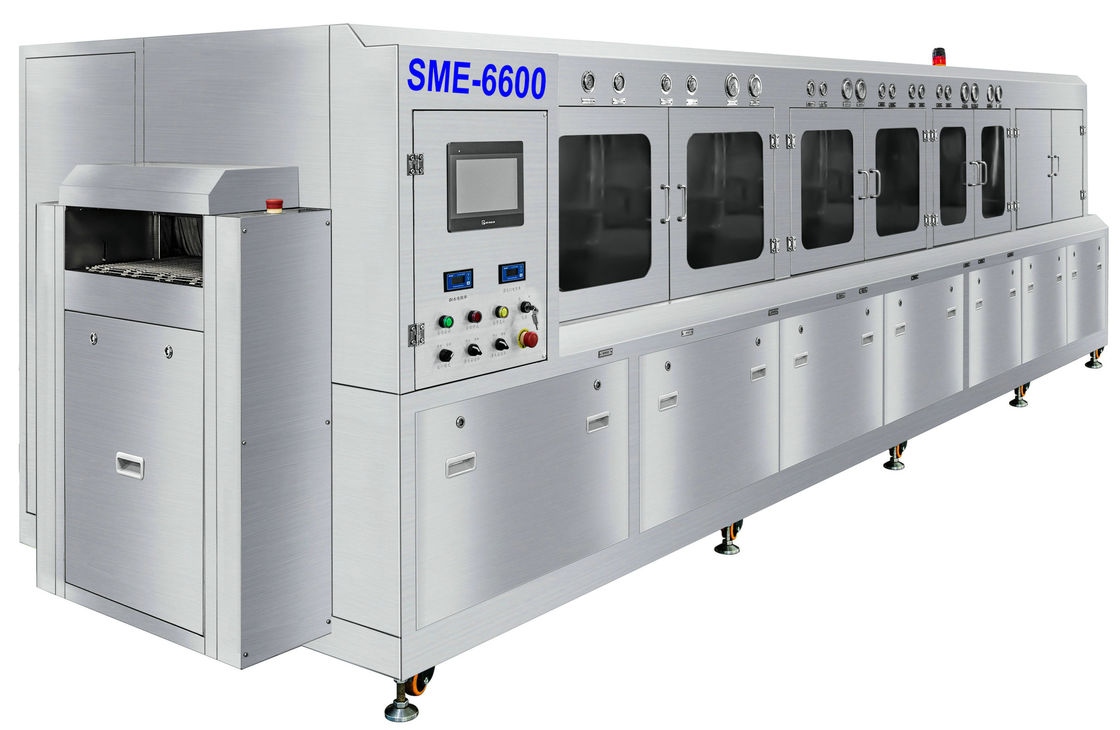

SME-6600 is a 6600mm length Stainless Steel High Pressure Dual Liquid Wash And DI Water Rinse Pbca Auto Cleaning System.
Excellent cleaning performance: PCBA flux residuals, soder balls and particles on PCBA, such as: rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations.
Functional cleaning section and process: Pre-wash+Wash1+Wash2+ Chemical isolation+ Pre-rinse+ Rinse+Final rinse+ Air blow dry+ Hot air dry1+ Hot air dry2.
Our advanced spray cleaning technology, the system has following advantages:
1. Big quantity PCBA in line cleaning system.
2. large amout liquid spray wash method, super wash result. Thoroughly clean water-sular solder paste flux and non-clean solder paste flux on SMT or THT PCBA after welding.
3. Longer wash sections + DI water rinse section+ Air blow section +2 hot air dry sections.
4. Liquid and fresh DI water supply automatically, post-section DI water overflow to the previous-section to renew DI water.
5. Up/down spary system on wash and rinse sections.
6. Liquid and DI water spray pressure can be adjusted for dirrerent PCBA cleaning requirements.
7. Standard equipped with Resistivity monitoring system, resistivity range 0~18 MΩ.
8. Air knives blow dry+ 2 section hot air dry system.
9. SUS304 stainless PCB flat conveyor net system.
10. PLC control system, English operation interface, easy operation.
11.Many optional functions avalible.
12. Total SUS304 structure, Acid and Alkali corrosion resistance.
Machine Spec:
| S/N | Item | SME-6600 Spec |
| 1 | conyeyor net | 600mm |
| 2 | conveyor speed | 0.1~1.5m/min |
| 3 | conveyor height | 900±50mm |
| 4 | conveyor direction | Left to Right |
| 5 | PCB size | L500*W600mm as max |
| 6 | PCB height | 100mm as max(with component) |
| 7 | wash tank capacity | 300L |
| 8 | rinse tank capacity | 30L+120L+30L |
| 9 | DI water consumption | 400~1000L/H |
| 10 | exhausted air | 42m³ |
| 11 | electric control | PLC+TP |
| 12 | Resistivity range | 0~18MΩ |
| 13 | PH range | 0~14 |
| 14 | air supply | 0.5Mpa |
| 15 | power supply | AC380V,50/60HZ, 3P,150KW |
| 16 | machine size | L6600*W1800*H1650mm |
| 17 | machine weight | 3600KG |
Q1: Why SME-6600 can clean all PCBAs?
A1: SME-6600 is a 6600mm length long machine, it has 2x600mm wash section with 2x14 spray rods on it, that's why it is so powerful.
Q2: Why is it 150KW?
A2: in wash section, it has 3x12KW heater;in pre-rinse section,it has 1x12KW heater; in Rinse section, it has 3x12KW heater; in hot air dry section ,it has 2x7.5KW heater, and we also have air blowers, electric pumps.
Q3: What is the liquid temperature and DI water temperature?
A3: liquid temperature can heat to 80℃; DI water can heat to 60℃.
Q4: What is the liquid consumption per hour?
A4: It depends on liquid itself and temperature, we install liquid cool condenser ,normally 5~15L/ Hour.
