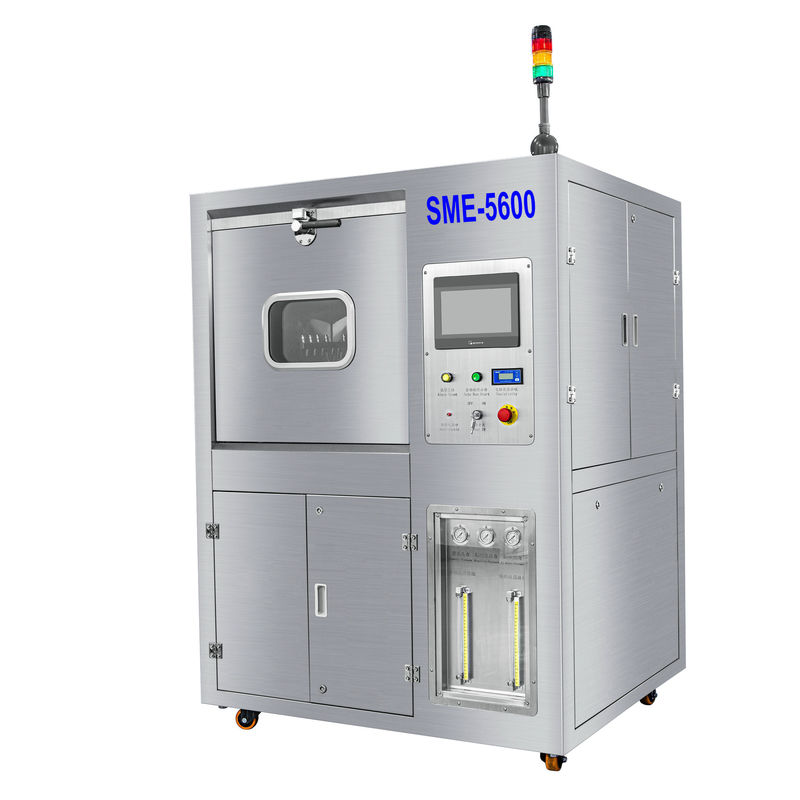

SME-5600 PCBA Cleaning machine Automatic Cleaning Machine with CE Mark

Product Details

Place of Origin: Dongguan, China

Brand Name: SME

Certification: CE, UL

Model Number: SME-5600

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 1500*1400*2150 mm(L*W*H)

Delivery Time: 25~30 days

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Supply Ability: 200sets/Year

Get Best Price
Product Details
High Light:

batch PCBA solvent washing machine

,

SUS304 solvent washing machine

,

SUS304 pcb cleaning machine

PCB Size:
30x30mm~550x600mm
Cleaning Basket Size:
L610*W560*H100mm* 2Layers
Wash Time:
5~10min
Rinse Time:
1~2min/time
Rinse Times:
3~5times(1~99 Avaliable)
Dry Time:
20~25min
Liquid Heat Temp:
Room Temp~60℃
Dry Temp:
Room Temp~99℃
Resistivity Range:
0~18MΩ
Air Supply:
0.5Mpa, 200~400L/min
Power Supply:
AC380V. 3P,50/60Hz, 28KW
Machine Size:
1300*1200*1850( L*W*T) Mm
Weight:
600KG
Material:
SUS304 Stainless Steel
PCB Size:
30x30mm~550x600mm
Cleaning Basket Size:
L610*W560*H100mm* 2Layers
Wash Time:
5~10min
Rinse Time:
1~2min/time
Rinse Times:
3~5times(1~99 Avaliable)
Dry Time:
20~25min
Liquid Heat Temp:
Room Temp~60℃
Dry Temp:
Room Temp~99℃
Resistivity Range:
0~18MΩ
Air Supply:
0.5Mpa, 200~400L/min
Power Supply:
AC380V. 3P,50/60Hz, 28KW
Machine Size:
1300*1200*1850( L*W*T) Mm
Weight:
600KG
Material:
SUS304 Stainless Steel
Product Description

Product Description

High Pressure PCBA Flux PCBA cleaning  machine Soldering Balls Cleaning Machine with CE Mark  is a compact, smart PCBA cleaning system.
SME-5600 PCBA cleaning system specially used to clean flux solder baslls... on PCBA, such as: rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations.

SME-5600 features:
1. Diffirent types of  flux and solder balls can be clean: for example, rosin flux, water-soluble flux , non-clean flux ,solder paste.
2. 2-layers cleaning basket: 610mm(L) ×560mm(W) × 100mm(H) x2 layers.
3. All processes are visible through a large observation window.
4 .Easy operation interface, quick setting clean parameters. Different passwords can be set for ooerator and engineers.
5. Standard liquid and DI water fliter.

6.DI water resistivity real time check. Resistivity range is 0~18 MΩ.
7. Compressed air blow off pipes and pumps, save liquid.
8. High standard cleanliness, ionic contamination completely meets the requirement of IIPC-610D I class.
9. Totally SUS304 structure,  solide, acid and alkali corrision-proof
SME-5600 spec:



ITEM

SPEC

Cleaning basket size

L610xW560xH100mmx 2layers

Diluent liquid tank capacity

60L

Spray liquid tank capacity

18L

Concentrate tank capacity

30L

Cleaning time

5~20min

Rinse time

1~2 min/times

Rinse times

1~10times

Dry time

10~30min

Diluent liquid heat temp

room temp ~60ºC

PCB dry time

room temp~99ºC

Resistivity range

0~18MΩ

Liquid filter

0.2um

DI water filter

0.2um

Air filter

10um

Vent size

φ76XH50(mm)

Power supply

AC380, 3 Phases, 50/60Hz, 30KW

Air supply

0.5Mpa, 400L/Min

Machine size

L1300xW1200x1850(mm)

Machine weight

600KG

Customer Question & Answer

Q1: What is the cycle time of SME-5600 batch cleaning  machine?

A1: Total 30~45min. wash 10min+rinse 10min+dry 10~25min.



Q2: What liuqid can be used in SME-5600 to clean PCBA?

A2: It depends on electonical components and solder paste on your PCBA. Water-based PCBA cleaning liquid  wash, DI water rinse.



Q3: Have many pcbas can SME-5600 clean in one cycle?

A3: L200*W100mm  size PCBA for example, it can clean 30~40pcs.

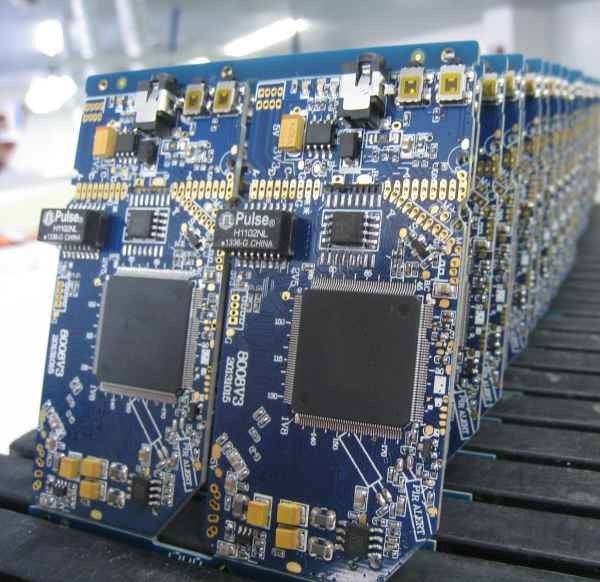

Comparison PCBA pictures before and after cleaning:


SME-5600 PCBA Cleaning machine  Automatic Cleaning Machine with CE Mark 0



 SME-5600 PCBA Cleaning machine  Automatic Cleaning Machine with CE Mark 1
