Product Details
Place of Origin: Dongguan, China
Brand Name: SHENHUA
Certification: CE,UL
Model Number: SME-750
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Vacuum +plywood case package, case size: 1100*1200*2100 mm(L*W*H)
Delivery Time: 25~30 days
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Supply Ability: 300sets/Year
Material: |
SUS304 Stainless Steel |
Stencil Size: |
L750*W750*T40mm As Max |
Liquid Tank Capacity: |
40L |
Wash Time: |
3~5min |
Blow Dry Time: |
3~5min |
Compressed-air Supply: |
0.5~0.7Mpa |
Compressed-air Flow Rate: |
400~600L/min |
Wash Type: |
2 Rods 360° Rotation Spray Liquid Wash |
Filter: |
1mm/100um/1um |
Machine Size: |
L800xW950xH1650 |
Machine Weight: |
230kg |
HS Code: |
847989990 |
Material: |
SUS304 Stainless Steel |
Stencil Size: |
L750*W750*T40mm As Max |
Liquid Tank Capacity: |
40L |
Wash Time: |
3~5min |
Blow Dry Time: |
3~5min |
Compressed-air Supply: |
0.5~0.7Mpa |
Compressed-air Flow Rate: |
400~600L/min |
Wash Type: |
2 Rods 360° Rotation Spray Liquid Wash |
Filter: |
1mm/100um/1um |
Machine Size: |
L800xW950xH1650 |
Machine Weight: |
230kg |
HS Code: |
847989990 |

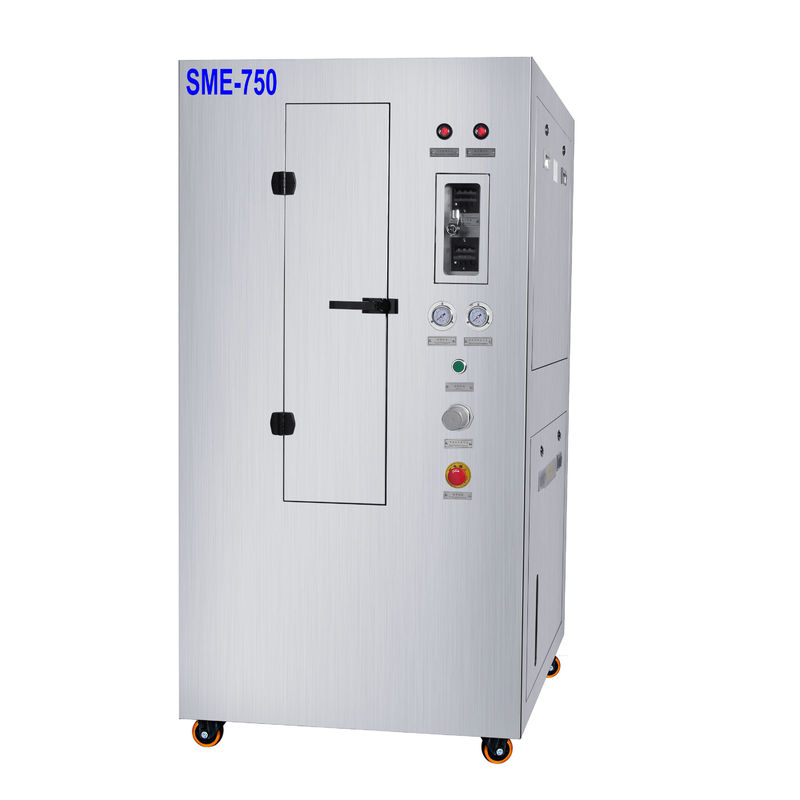

SME-750 Pneumatic Stencil Cleaner 736*736mm Solder Paste And Red Glue Stencil Automatic Cleaning Machine is used to clean SMT solder paste stencil or red glue stencil. Famous pneumatic parts, strictly produce process, patented rotation spray rods guarantee you a high quality stencil cleaning machine. To clean solder paste stencil is very easy for this machine. It make your cleaning process safe, easy, cost down and efficient.
Both solvent and water-based clean liquid can be use in SME-750. Cleaning result is the same-100% clean. We provide high quality machines!
Machine Features:
1. SUS 304 structure, Acid and Alkali corrosion resistance, 10 years lifespan.
2. Only driven by compressed air, no use electric power at all.
3. One button easy operation, clean and dry complete automatically.
4. Patent 360° rotation spray rods on both sides, ensure good cleaning quality and stable stencil tension.
5. Liquid recycle use, low consumption.
6. Inner-lock safety door and safety valve, once open, machine will be stopped immediately.
7. 3-level precise liquid filtering system. Liquid used repeatedly.
8. Super well-known Pneumatic parts from all over the word manufactures.
9. Modular design, easy maintenance.
Machine Spec:
| Item | SME-750 spec |
| Max stencil size | L750 x W750 x H40(mm) |
| Liquid tank | 40L |
| Clean time | 2~4min |
| Dry time | 2~5min |
| Compressed air pressure | 0.5~0.7Mpa |
| Air flow rate | 400~600L/min |
| Clean method | 360°rotat spray clean + compressed air blow dry |
| Filter system | 20um/5um/1um, 3 level |
| Machine size | L800 x W950 x H1650(mm) |
| Machine weight | 230KG |
Other accessories , please discuss with us in details.
