600mm conveyor net width DI Water Deflux Machine , High Pressure Semi Parts Flux Wash Machine

Product Details

Place of Origin: Guangdong, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SC810

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 7200*2200*2200 mm(L*W*H)

Delivery Time: 60~80days

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Supply Ability: 100 sets per Year

Get Best Price
Product Details
High Light:

900mm water cleaning machine

,

0.5Mpa flux wash machine

,

0.5Mpa water cleaning machine

Material:
SUS304 Stainless Steel
Package Size:
L600*W400*T100mm As Max
Conveyor Height Width:
900±50mm
Conveyor Speed:
0.1~1.5m/min
Conveyor Direction:
Left To Right
DI Water Amount:
400~800L/H
Air Exhaust Amount:
36m³/H
DI Water Resistivity Range:
0~18MΩ
Compressed-air Supply:
0.5Mpa, 200~400L/min
Power Supply::
AC380V, 3P, 50/60Hz,150KW
Machine Size:
5200*1750*1650( L*W*H) Mm
Machine Weight:
3000KG
Material:
SUS304 Stainless Steel
Package Size:
L600*W400*T100mm As Max
Conveyor Height Width:
900±50mm
Conveyor Speed:
0.1~1.5m/min
Conveyor Direction:
Left To Right
DI Water Amount:
400~800L/H
Air Exhaust Amount:
36m³/H
DI Water Resistivity Range:
0~18MΩ
Compressed-air Supply:
0.5Mpa, 200~400L/min
Power Supply::
AC380V, 3P, 50/60Hz,150KW
Machine Size:
5200*1750*1650( L*W*H) Mm
Machine Weight:
3000KG
Product Description

Product Description

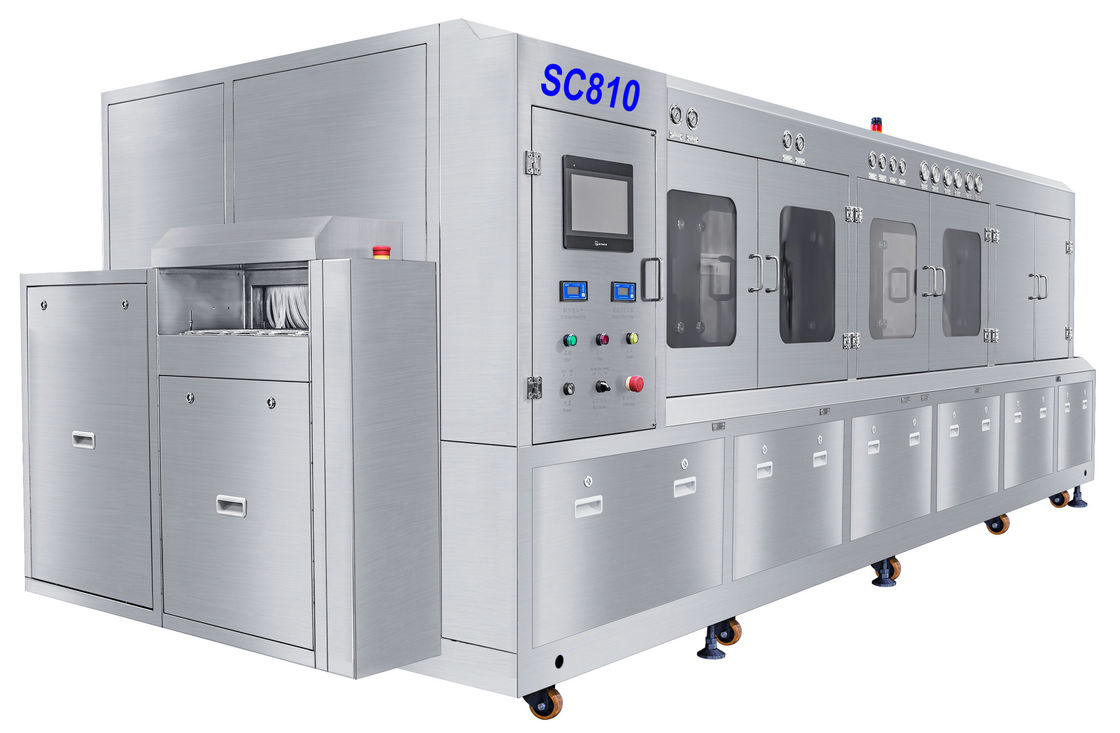

SC810 is special design for leadframe package semicom IC soldering flux cleaning.



Liquid wash+DI water rinse process, 1000mm long liquid wash section and 600mm net width, useful for all leadframe package.



SC810 process: Pre-wash+Wash+ Chemical isolation+ Pre-rinse+ Rinse+Final rinse+ Air blow dry+ Hot air dry1+ Hot air dry2.


By using SME latest mix spray cleaning technology, the system has following advantages:


1. Leadframe package flux in line cleaning system.
2. Liquid mix  spray wash technology, super wash result, thoroughly clean water-sular solder paste flux and non-clean flux.
3. Longer wash sections + DI water rinse section+ Air blow section +2 hot air dry sections.
4. Liquid and fresh DI water supply automatically, post-section DI water overflow to the previous-section to renew DI water.
5. Up/down  spary system on wash and rinse sections.
6. Liquid and DI water spray pressure can be adjusted for dirrerent semiconductor products cleaning requirements.
7. Standard equipped with Resistivity monitoring system, resistivity range 0~18 MΩ.
8. Air knives blow dry+ 2 section hot air dry system.
9. SUS304 stainless PCB flat conveyor net system.
10. PLC control system, English operation interface, easy operation.
11.Many optional functions avalible.

12. Total SUS304 structure, Acid and Alkali corrosion resistance.

Machine Spec:



S/N Item SC810 Spec
1 conyeyor net  600mm
2 conveyor speed 0.1~1.5m/min
3 conveyor height 900±50mm
4 conveyor direction Left to Right
5 product size L400*W600mm as max
6 product height 100mm as max(with component)
7 wash tank capacity 120L
8 rinse tank capacity 30L+60L+30L
9 DI water consumption 400~800L/H
10 exhausted air 36m³
11 electric control PLC+TP
12 Resistivity range 0~18MΩ
13 PH range 0~14
14 air supply 0.5Mpa
15 power supply AC380V,50/60HZ, 3P,110KW
16 machine size L5200*W1750*H1650mm
17 machine weight 3000KG



Customer Question & Answer

Q1: What kind of semiconductor profucts can  SC810 clean?

A1: Flux on BGA,CSP,IGBT, IPM Leadframe pacakage. it has 600mm wash section with 2x8 spray rods on it, that's why it is so powerful.



Q2: Why is it 110KW?

A2: in wash section, it has 3x12KW heater;in pre-rinse section,it has 1x12KW heater; in Rinse section, it has 1x12KW heater; in hot air dry section ,it has 2x7.5KW heater, and we also have air blowers, electric pumps.



Q3: What is the liquid temperature and DI water temperature?

A3: liquid temperature can heat to 80℃; DI water can heat to 60℃.



Q4: What is the liquid consumption per hour?

A4: It depends on liquid itself and temperature,  we install liquid cool condenser ,normally 5~10L/ Hour.
