6300LC Industrial hardware parts and plastic box in line Cleaning Machine

Product Details

Place of Origin: Guangdong, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-6300L

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 7200*2200*2200 mm(L*W*H)

Delivery Time: 60~80days

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Supply Ability: 100 sets per Year

Get Best Price
Product Details
High Light:

6300L PCBA Cleaning Machine

,

100mm PCBA Cleaning Machine

,

6300L 3D glasses cleaning machine

Material:
SUS304 Stainless Steel
Glasses Basket:
L400*W500*T100mm As Max
Conveyor Net Width:
500mm
Conveyor Speed:
0.1~1.5m/min
Conveyor Direction:
Left To Right
DI Water Amount:
500~1000L/H
Air Exhaust Amount:
42m³/H
DI Water Resistivity Range:
0~18MΩ
Compressed-air Supply:
0.5Mpa, 200~400L/min
Power Supply::
AC380V, 3P, 50/60Hz,110KW
Machine Size:
5200*1650*1650( L*W*H) Mm
Machine Weight:
2600KG
Material:
SUS304 Stainless Steel
Glasses Basket:
L400*W500*T100mm As Max
Conveyor Net Width:
500mm
Conveyor Speed:
0.1~1.5m/min
Conveyor Direction:
Left To Right
DI Water Amount:
500~1000L/H
Air Exhaust Amount:
42m³/H
DI Water Resistivity Range:
0~18MΩ
Compressed-air Supply:
0.5Mpa, 200~400L/min
Power Supply::
AC380V, 3P, 50/60Hz,110KW
Machine Size:
5200*1650*1650( L*W*H) Mm
Machine Weight:
2600KG
Product Description

Product Description

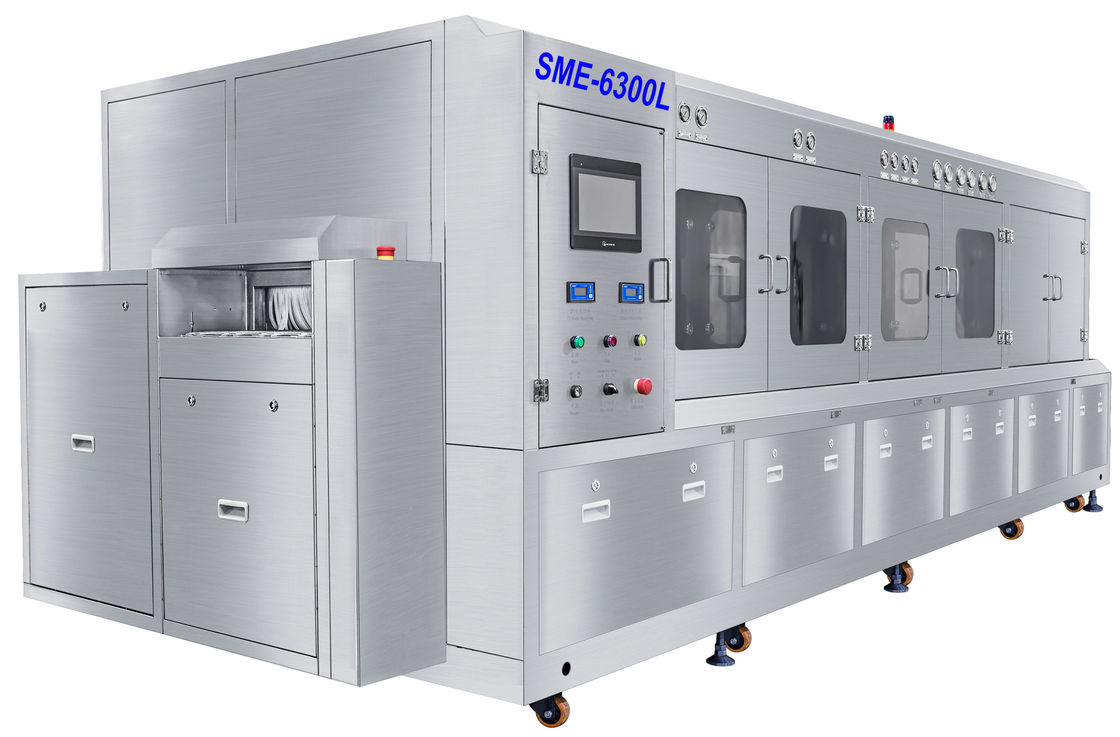

SME-6300LC is an industrial hardware parts and plastic box in line Cleaning Machine.



Specially design to clean industrial parts, plastic boxes,  3D glasses. This machine is very high efficient,It can clean 1500~1800 pcs of 3D glasses in our hour. The galsses are ver clean and dry, make your 3D glasses use repeatedly and rapidly.



Hot DI water spray wash and powerful hot compressed air dry, just only 20minutes,you can use fresh  3D glasses again.



Pre-wash+Wash+ Rinse+Final rinse+ Air blow dry1~3+ Hot air dry1+ Hot air dry2 automatic working process.



Our advanced spray cleaning technology, the system has following advantages:


1. 3D glasses batch cleaning system.
2. Heavy flow DI water spray wash system.Very good clean result.
3. Wash sections + DI water rinse section+ Air blow section1~3 +2 hot air dry sections.
4. DI water supply automatically, post-section DI water overflow to the previous-section to renew DI water.
5. Up/down  spary system on wash and rinse sections.
6. DI water spray pressure can be adjusted for dirrerent cleaning requirements.
7. Standard equipped with Resistivity monitoring system, resistivity range 0~18 MΩ.
8. 3 Air knives blow dry+ 2 section hot air dry system. Very good dry result.
9. SUS304 stainless flat conveyor net system.
10. PLC control system, English operation interface, easy operation.
11.Many optional functions avalible.

12. Total SUS304 structure, Acid and Alkali corrosion resistance.

Machine Spec:



S/N Item SME-6300L Spec
1 conyeyor net  500mm
2 conveyor speed 0.1~1.5m/min
3 conveyor height 900±50mm
4 conveyor direction Left to Right
5 glass bakset size L400*W500mm as max
6 glass basket height 100mm as max
7 wash tank capacity 120L
8 rinse tank capacity 30L+30L
9 DI water consumption 400~800L/H
10 exhausted air 40m³
11 electric control PLC+TP
12 Resistivity range 0~18MΩ
13 PH range none
14 air supply 0.5Mpa
15 power supply AC380V,50/60HZ, 3P,110KW
16 machine size L5120*W1650*H1650mm
17 machine weight 2600KG



Customer Question & Answer

Q1: which place does this macine use?

A1: Large amusement park,theme park,cinema,museum to gurantee the safety of audience.



Q2: Any company is using this machine?

A2: Yes, Beijing Universal park is one of our customers who using it.



Q3: Does 3D glasses very clean and dry after coming out ?

A3: Yes, we use several section to wash and several section to blow dry. It is totally dry after coming from the machine.







Ask something for more detail

3D glasses pictures  after clean:
