Home > products > Stencil Cleaning Machine > New developped Aqueous liquid splder paste stencil spray wash machine with no-rinse process

New developped Aqueous liquid splder paste stencil spray wash machine with no-rinse process

Product Details

Place of Origin: Dongguan, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-860

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: negotiation

Packaging Details: Plywood+Vacuum package, size: 1600*1700*2040 (L*W*T) mm

Delivery Time: 40~45 work days

Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P

Supply Ability: 200 sets per year

Get Best Price
Product Details
High Light:

MES automatic stencil cleaner

,

Hot Air Blow Dry smt machine

,

DI Water automatic stencil cleaner

Stencil Size:
29*29*1.57 Inches (L*W*T) As Max
Wash Liquid:
Water-based Solder Paste Liquid
Rinse Water:
No Need
Dry:
Hot Air Blow Dry
Wah Time:
3~6min
Rinse Time:
No Need
Dry Time:
3~6min
Liquid/water Filter:
1um/no Need
Weight:
620KG
Machine Size:
1400*1470*1950( L*W*T) Mm
Stencil Size:
29*29*1.57 Inches (L*W*T) As Max
Wash Liquid:
Water-based Solder Paste Liquid
Rinse Water:
No Need
Dry:
Hot Air Blow Dry
Wah Time:
3~6min
Rinse Time:
No Need
Dry Time:
3~6min
Liquid/water Filter:
1um/no Need
Weight:
620KG
Machine Size:
1400*1470*1950( L*W*T) Mm
Product Description

  SHENHUA is a leading smt stencil cleaner manufacturer company in China. We make pneumatic stencil cleaning machine, electric spray cleaning machine and ultrasonic stencil cleaning machine. We've installed over 800 sets in domestic and overseas customer's factories. We sold 100 sets SME-750 pneumatic stencil cleaning machine in 2020.

Machine Description



  SME-800 MES connected 200V and 415V aqueous liquid solder paste stencil wash machine with no-rinse process.



  SME-800 is an automatic, industrial + PLC controlled and MES system connected smart equipment. SME-800 has MES modular and MES port and can provide machine parameters to customers' MES system.



  SME-800 Multiple application: solder paste stencil, mis-printed PCB and squeegees.






Machine Features:



1. Process: water-based liquid wash +NO need DI water rinse+ hot air blow dry process.
2. Multi-use: solder paste, mis-printed PCB, squeegee.
3. Stable mechanism: stencil moves back and forth in the wash cabinet while spray rods and air knives fixed.-- make the machine stable and relaible.
4. Excellent cleaning result: up to 4~5kg/cm2 spray pressure and high volume nozzles, very good cleaning result.
5. Real time filtrer system: liquid can be recirculated used, no solder balls comes back to stencil surface again. Especially for precise stencil.
6. Less distance, more efficient:4 spray rods and air knives fixed on left and right side of stencil, 750mm long stencil move distance reduce to 420mm.
7. Pressure meters : cleaning liquid /liquid filter pressure meters on front panel,easy to watch and monitor them.
8. SUS304 stainless steel structure:alkalic and alkacid corrision protection. All pipes, fIlter barrel and pumps are sus304 material, no plastic pipes at all.

9. One key easy operation: just push “start” key, all process are running automatically according to program setting.
10. Visible: window on right side of clean chamber, all process are visible.
11. Liquid cost down: Compressed air blow out remain liquid in pipes and pumps after cleaning process , save up to 50% liquid.
12. PLC control, TP English operation interface: clean time, temp;rinse time, temp; dry time, temp...parameters easy to set and modify.





Machine Spec:

S/N Item SPEC Remarks
1 stencil size L29*W29*T1.57inches
2 wash time 3~5min our liquid
3 rinse time NO NEED
4 dry time 3~6min
5 wash liquid temp room temp~60℃
6 DI water temp NO NEED
7 hot air temp room temp~100℃
8 liquid tank capacity 60L/60L
9 liquid spray pressure 4~5kg/cm2
10 liquid type water-based liquid
11 Water type no need
12 liquid/water filter precision 1um/No need
13 liquid heat power 9KW
14 water heat power no need
15 hot air heat power 6KW
16 electric power and air supply AC380V,3P,50/60Hz,19KW,0.5Mpa
17 Machine size L1300*W1400*H1950mm
18 Machine weight 620kg



Questions and Answers:

Q1. Why choose this electric stencil cleaning machine?

A1:  Because SME-800 /860use water-based liquid which is safety, environmental-protection and no need to rinse with our liquid.



Q2: Can SME-800/860 clean 3mm thick red glue printed cooper stencil and palstic mask?

A2: can not with no-rinse process, only for solder paste stencil.



Q3: Is it very dry after wash, rinse and dry process?

A3: Yes, it is very dry because hot air temperture and air blow result.





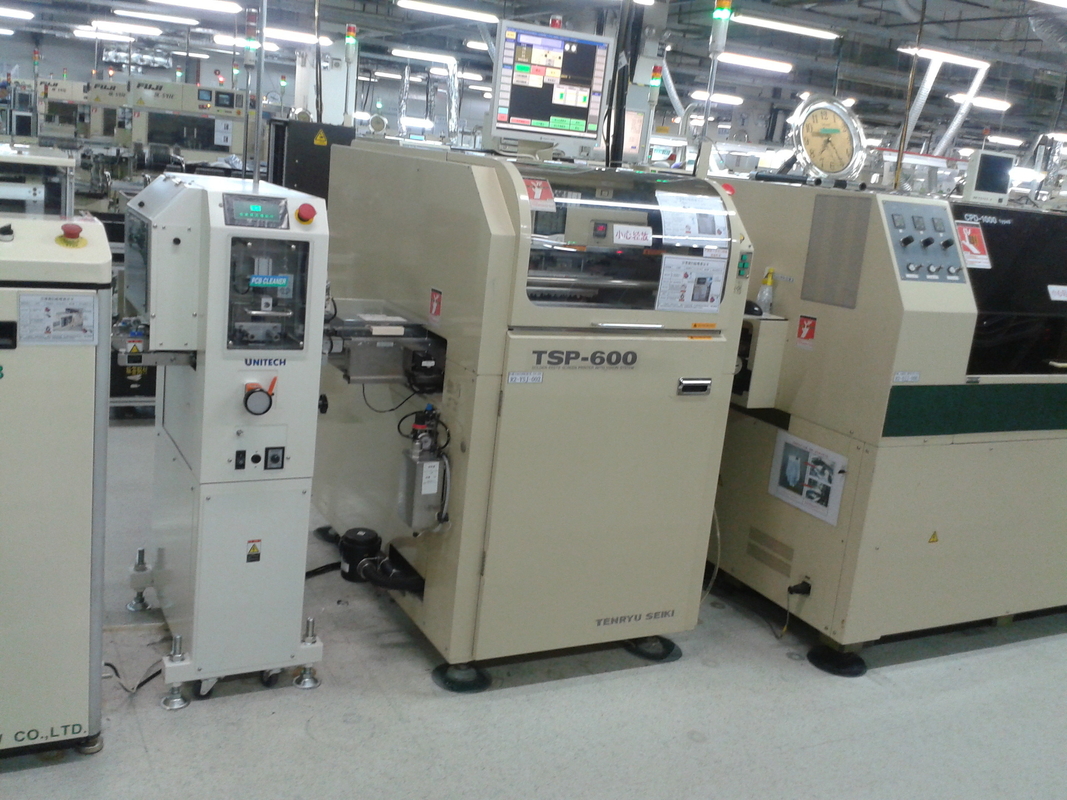

New developped Aqueous liquid splder paste stencil spray wash machine with no-rinse process 0
