Product Details
Place of Origin: Guanddong, China
Brand Name: SHENHUA
Certification: CE,UL
Model Number: SME-500S
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Vacuum +plywood case package, case size: 1600*850*1850 mm(L*W*H)
Delivery Time: 30~40 days
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Supply Ability: 200sets/Year
Test Method: |
Static |
PCB/PCBA Size: |
L480*W400*H40mm |
Control: |
Computer Windows |
Test Range: |
0.01~20.00ug NaCl Eq/cm2 |
Test Resolution: |
0.001us/cm |
Test Accuracy: |
5% |
Solvent Tank Capacity: |
15L |
Power Supply: |
AC220V,1 Phase, 50/60HZ, 6A |
Machine Size: |
L900xW630xH1100 |
Weight: |
120KG |
Test Method: |
Static |
PCB/PCBA Size: |
L480*W400*H40mm |
Control: |
Computer Windows |
Test Range: |
0.01~20.00ug NaCl Eq/cm2 |
Test Resolution: |
0.001us/cm |
Test Accuracy: |
5% |
Solvent Tank Capacity: |
15L |
Power Supply: |
AC220V,1 Phase, 50/60HZ, 6A |
Machine Size: |
L900xW630xH1100 |
Weight: |
120KG |

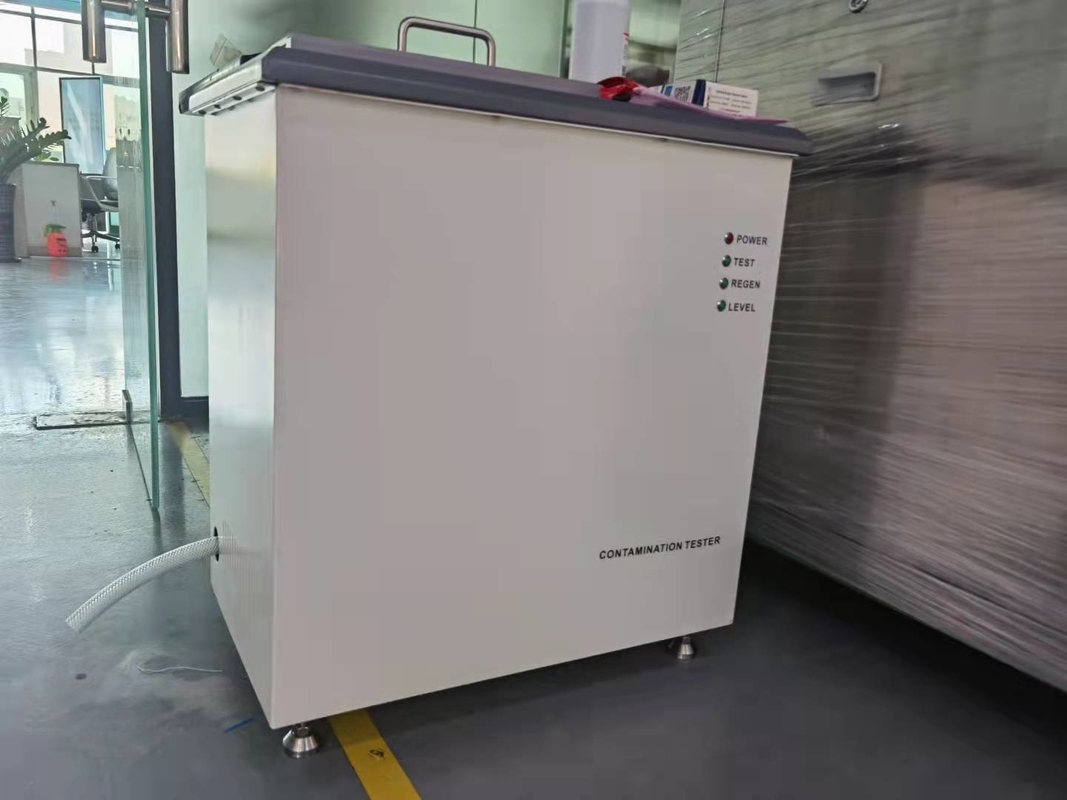

Semiconductor Parts, PCBA, PCB Ion Contamination Tester 75% IPA Solvent Cleanliness Tester is specially designed to test big bare PCB for PCB manufacture factory. According to IPC-TM-650 requirement and define, the test porcess include solvent regeneration, inos exact and ions test 3 process.
This big inonic tester adpot ROSE method to check mix ions quantity to calculate Nacl Eq/cm2 value through its high precise probes and precise analysis system.
Machine advantages:
1. Provide an accurate, repeatable, raped method for ionic contamination test.
2. Determine the cleanliness of bare PCB and assembly PCBA.
3. Comly with current industrial specifications such as IPC-TM-650, MIL-STD-2000A,MIL-P-28809,DEF-STD-10/03,IEC...
4. Test tank specially designed for complete ionic contamination extraction.
5. Test tank changable, tank can be made on customer's request.
6. More reasonable control mechanism to ensure accurate test.
7. Dynamic or Static test method.
8. Easy-use software, friendly interface, English/Chinese language.
Test Software features
1. Windows work environment( windows7, windows xp,etc).
2. English/Chinese interface.
3. USB communication port.
4. Word or PDF report form.
5. Metric(cm)/Britsh(inch) system.
6. Simple parameters set-up.
7. Chart, data, status on one screen.
SME-350 SPEC
| Item | SME-500 | Remarks |
| Test method | Static | |
| Level adjustment | Yes | |
| Sensitiveity | 0.001us/cm | |
| Solution capacity(L) | 15 | |
| Tank size(mm) | 500x500x30 | |
| Sample size(mm) | 480x400x30 | |
| Heater | Yes | |
| Max operation temp(ºC) | 45 | |
| Power supply | AC220V,50Hz, 1A | |
| Machine size(mm) | 900x630x1100 | |
| Weight | 120 |
Q1: Is this machine precise enough?
A1: Yes, we use sensor 0.001us/cm, so don't worry about it.
Q2: What standard can this tester meet?
A2: All kinds of international standard, like: MIL-P-28809, MIL-STD-2000A, DEF-STD-10/03...
