SME-500S Ionic Contamination Test Equipment for PCBA ,PCB and semiconductor products after cleaning

Product Details

Place of Origin: Guanddong, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-500S

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 1200*550*1450 mm(L*W*H)

Delivery Time: 30~40 days

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Supply Ability: 200sets/Year

Get Best Price
Product Details
High Light:

10L tank Ionic Contamination Tester

,

SME 150 Ionic Contamination Tester

,

SME 150 ionic contamination testing equipment

Test Method:
Static
PCB/PCBA Size:
L480*W400*H45mm
Control:
Computer Windows
Test Range:
0.01~20.00ug NaCl Eq/cm2
Test Resolution:
0.001us/cm
Test Accuracy:
5%
Solvent Tank Capacity:
15L
Power Supply:
AC220V,1 Phase, 50/60HZ, 6A
Machine Size:
L900xW450xH1100mm
Weight:
80KG
Test Method:
Static
PCB/PCBA Size:
L480*W400*H45mm
Control:
Computer Windows
Test Range:
0.01~20.00ug NaCl Eq/cm2
Test Resolution:
0.001us/cm
Test Accuracy:
5%
Solvent Tank Capacity:
15L
Power Supply:
AC220V,1 Phase, 50/60HZ, 6A
Machine Size:
L900xW450xH1100mm
Weight:
80KG
Product Description



Product Description

SME-500S is a high quality ion contamination tester for middle size PCB, PCBA and Semiconductor products after cleaning.
Iron painting material, 15L test tank bare PCB and assembly PCBA ionic contamination tester,.

SME-500S adpot ROSE method to check mix ions quantity and calculate Nacl Eq/cm2 value through its high precise probes and precise analysis system.
It is accurate and easy to use, the test result can be save and print for record.

Machine advantages:

1. Provide an accurate, repeatable, raped method for ionic contamination test.
2. Determine the cleanliness of bare PCB and assembly PCBA.
3. Comly with current industrial specifications such as IPC-TM-650, MIL-STD-2000A,MIL-P-28809,DEF-STD-10/03,IEC...
4. Test tank specially designed for complete ionic contamination extraction.
5. Test tank changable, tank can be made on customer's request.
6. More reasonable control mechanism to ensure accurate test.
7. Dynamic or Static test method.
8. Easy-use software, friendly interface, English/Chinese language.

Test Software features

1. Windows work environment( windows7, windows xp,etc).
2. English/Chinese interface.
3. USB communication port.
4. Word or PDF report form.
5. Metric(cm)/Britsh(inch) system.
6. Simple parameters set-up.
7. Chart, data, status on one screen.

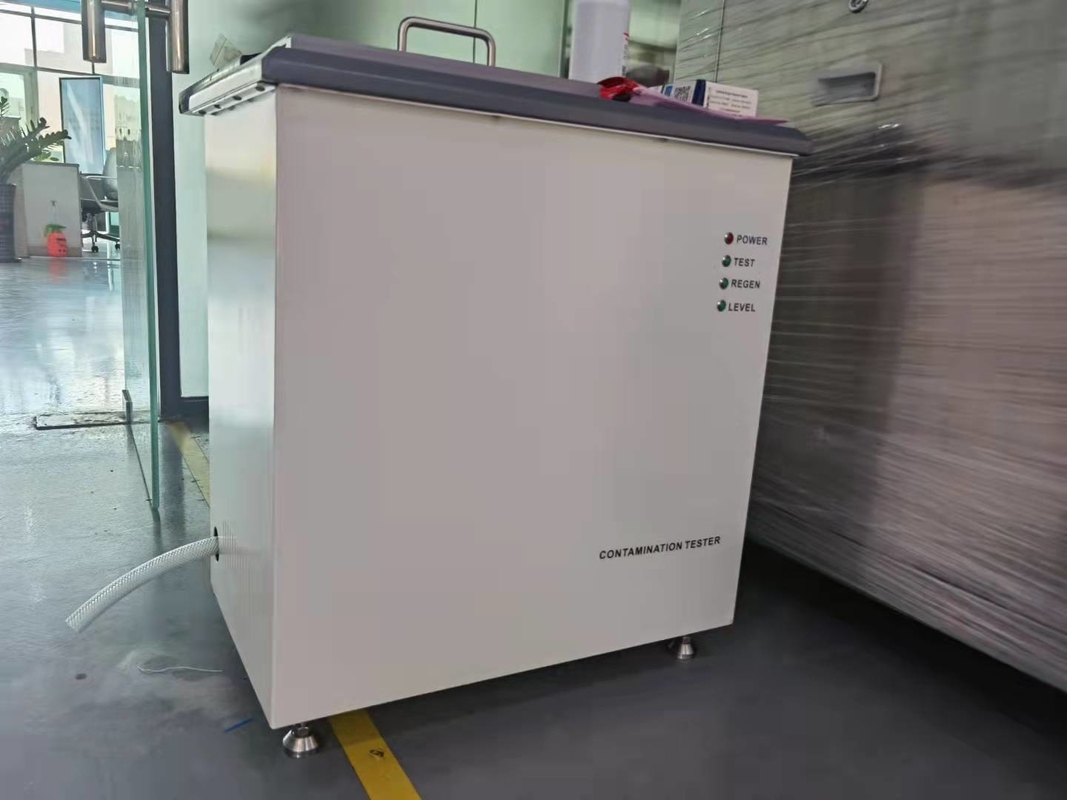

SME-500S  Ionic Contamination Test Equipment for PCBA ,PCB and semiconductor products after cleaning 0
SME-150 technical spec


ItemSME-500SRemarks
Test methodStatic
solvent level adjustmentYes
Sensitiveity0.001us/cm
Solution capacity(L)15
Tank size(mm)480x400x45
Sample size(mm)480x400x45
HeaterYes
Max operation temp(ºC)45
Power supplyAC220V,50Hz, 1A
Machine size(mm)900x440x1100
Weight80

Customer Question & Answer

Q1: Is this machine precise enough?
A1: Yes, we use sensor 0.001us/cm, so don't worry about it.

Q2: What standard can this tester meet?
A2: All kinds of international standard, like: MIL-P-28809, MIL-STD-2000A, DEF-STD-10/03...


Ask something for more details

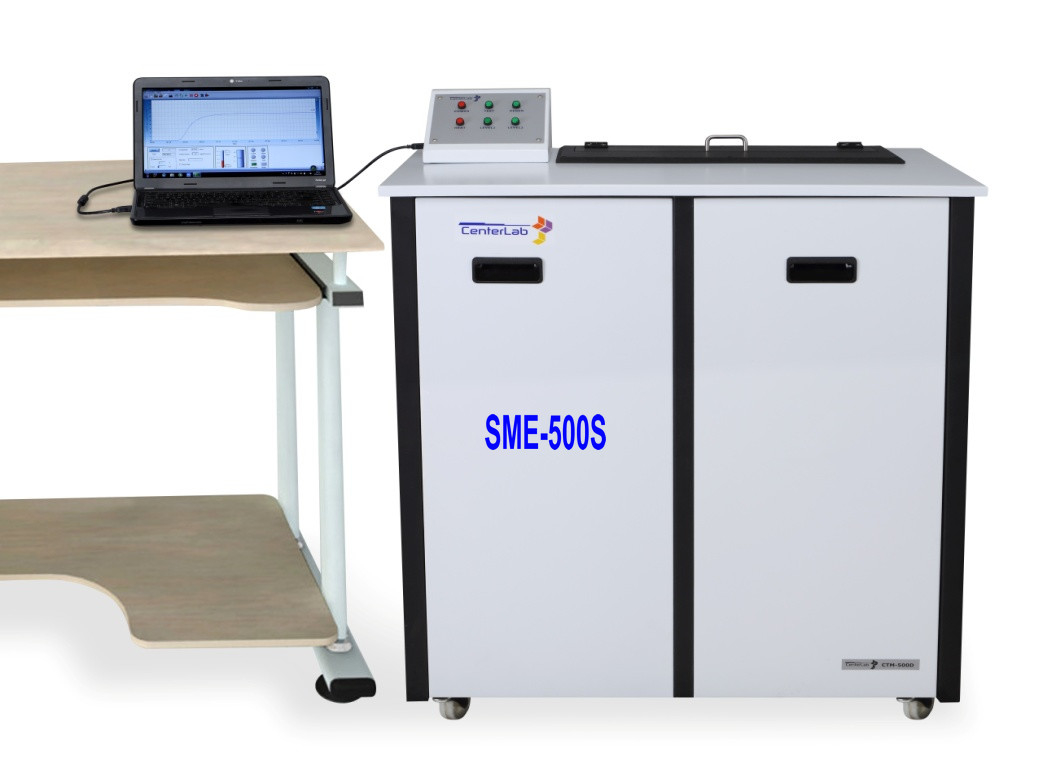

Test software and PCB picutre



SME-500S  Ionic Contamination Test Equipment for PCBA ,PCB and semiconductor products after cleaning 1
