Static ROSE method 10L tank PCBA ionic contamination tester meet IPC-TM-650 standard

Product Details

Place of Origin: Guanddong, China

Brand Name: SHENHUA

Certification: CE,UL

Model Number: SME-350

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: negotiation

Packaging Details: Vacuum +plywood case package, case size: 1200*550*1450 mm(L*W*H)

Delivery Time: 30~40 days

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Supply Ability: 200sets/Year

Get Best Price
Product Details
High Light:

15L solvent Ionic Contamination Tester

,

static PCBA Ionic Contamination Tester

,

ipc tm 650 ionic contamination

Test Method:
Static
PCB/PCBA Size:
L300*W280*H45mm
Control:
Computer Windows
Test Range:
0.01~20.00ug NaCl Eq/cm2
Test Resolution:
0.001us/cm
Test Accuracy:
5%
Solvent Tank Capacity:
10L
Power Supply:
AC220V,1 Phase, 50/60HZ, 6A
Machine Size:
L900xW435xH1010
Weight:
80KG
Test Method:
Static
PCB/PCBA Size:
L300*W280*H45mm
Control:
Computer Windows
Test Range:
0.01~20.00ug NaCl Eq/cm2
Test Resolution:
0.001us/cm
Test Accuracy:
5%
Solvent Tank Capacity:
10L
Power Supply:
AC220V,1 Phase, 50/60HZ, 6A
Machine Size:
L900xW435xH1010
Weight:
80KG
Product Description

Product Description

Static ROSE method tester 10L PCBA ionic contamination tester meet with IPC-TM-650 standard. SME-350 is specially used to accurate test the ions on the surface of PCBA and semiconductor products.

SME-350 adpot ROSE method to check mix ions quantity to calculate Nacl Eq/cm2 value through its high precise probes and precise analysis system.
SME-350 will print the test result after testing.



Machine advantages:

1. Provide an accurate, repeatable, raped method for ionic contamination test.
2. Determine the cleanliness of bare PCB and assembly PCBA.
3. Comly with current industrial specifications such as IPC-TM-650, MIL-STD-2000A,MIL-P-28809,DEF-STD-10/03,IEC...
4. Test tank specially designed for complete ionic contamination extraction.
5. Test tank changable, tank can be made on customer's request.
6. More reasonable control mechanism to ensure accurate test.
7. Dynamic or Static test method.
8. Easy-use software, friendly interface, English/Chinese language.

Test Software features

1. Windows work environment( windows7, windows xp,etc).
2. English/Chinese interface.
3. USB communication port.
4. Word or PDF report form.
5. Metric(cm)/Britsh(inch) system.
6. Simple parameters set-up.
7. Chart, data, status on one screen.

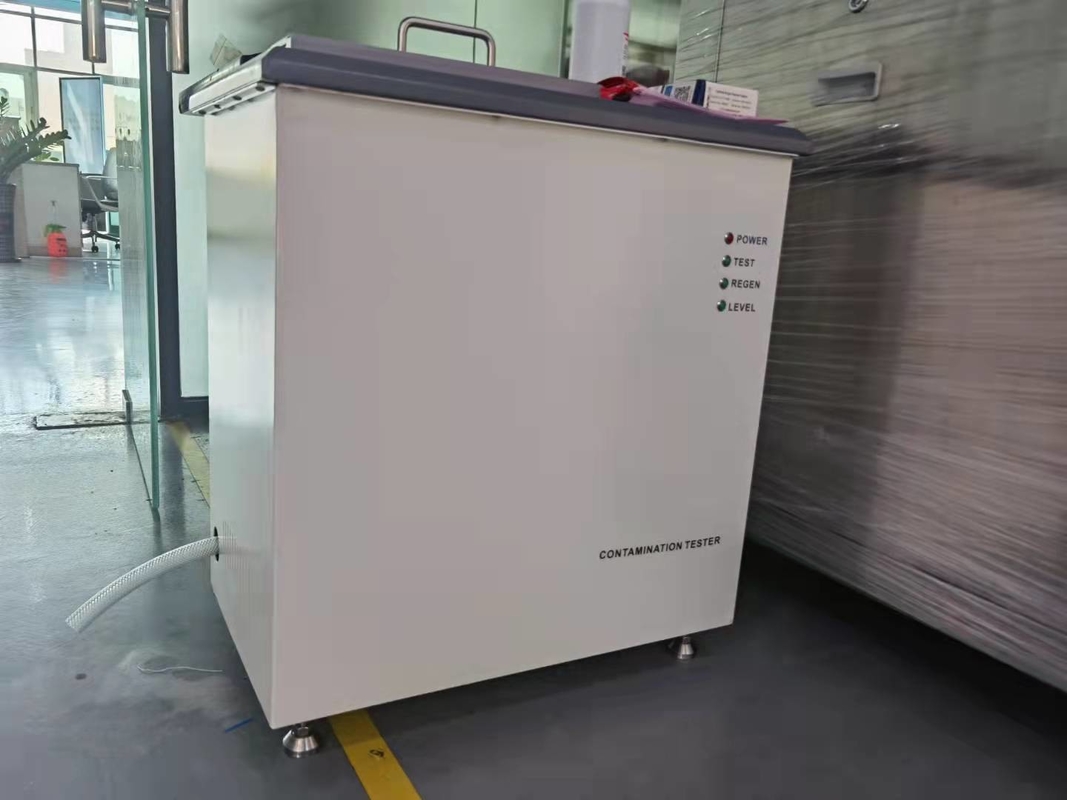

Static ROSE method 10L tank PCBA ionic contamination tester meet  IPC-TM-650  standard 0

SME-350 SPEC





Item SME-350 Remarks
Test method static
Level adjustment Yes
Sensitiveity 0.001us/cm
Solution capacity(L) 10
Tank size(mm) 350x300x45
Sample size(mm) 300x280x45
Heater Yes
Max operation temp(ºC) 45
Power supply AC220V,50Hz, 1A
Machine size(mm) 700x435x700
Weight 55

Customer Question & Answer

Q1: Is this machine precise enough?
A1: Yes, we use sensor 0.001us/cm, so don't worry about it.

Q2: What standard can this tester meet?
A2: All kinds of international standard, like: MIL-P-28809, MIL-STD-2000A, DEF-STD-10/03...


Ask something for more details

Test software and PCB picutre
