Product Details
Place of Origin: Guanddong, China
Brand Name: SHENHUA
Certification: CE,UL
Model Number: DI-250
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Vacuum +plywood case package, case size: 1500*1500*2000 mm(L*W*H)
Delivery Time: 30~40 days
Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram
Supply Ability: 200sets/Year
DI Water Productivity: |
250L/Hour |
DI Water Resistivity: |
15MΩ |
DI Water Tank Capacity: |
160L |
Productivity Rate: |
50% |
Tape Water Supply: |
1.5L/Hour |
Power Supply: |
AC220V,1 Phase, 50/60HZ,2.2KW |
Machine Size: |
L1100xW1100xH1600 |
Weight: |
400KG |
DI Water Productivity: |
250L/Hour |
DI Water Resistivity: |
15MΩ |
DI Water Tank Capacity: |
160L |
Productivity Rate: |
50% |
Tape Water Supply: |
1.5L/Hour |
Power Supply: |
AC220V,1 Phase, 50/60HZ,2.2KW |
Machine Size: |
L1100xW1100xH1600 |
Weight: |
400KG |

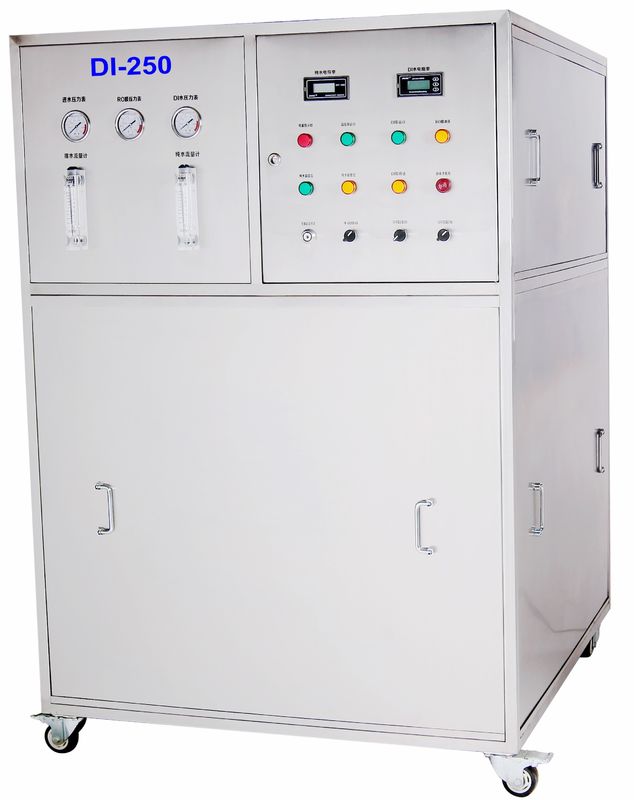

DI-250 250L/Hour,SUS304 stainless steel material industrial Deionized water treatment machine is used to change tap water into DI waer. It has 3 main construtions: Pre-treatment, RO reverse system and Resin MB system. It is compact, automatic, reliable and high productivity.
Machine advantages:
1. All in one intergration design, compact machine.
2. Advanced DI water purify technology, RO reverse+ MB process.
3. Automatic working, DI water resistivity up to 15MΩ and stable.
4. Low electric power, low press RO film.
5. Multiple MB to improve Di water productivity and resistivity.
6. 24 hour working.
7. Machine stop immediately to protect itesel once tap water supply is not enough.
8. RO system will stop once RO water tank reaches it high level position..
DI-250 technical spec
| Item | DI-250 | Remarks |
| Tap water supply | 1.5T/Hour | |
| DI water productivity | 250L/Hour | |
| water tank capacity | 160L | |
| DI water resistivity | 15MΩ | |
| Carbon+sand capacity | 25L | |
| Soften resin | 25L | |
| Ro film | 40*40,1PCS | |
| MB resin | 50L | |
| Power supply | AC220V,50Hz, 2.2KW | |
| Machine size(mm) | 1100x110x1600 | |
| Weight | 400 |
Q1: What is DI water resistivity?
A1: At the begain, It is 17MΩ. The resistivity will decline as the machine using for several months. when it is low than 2MΩ, you need to replace carbon,san,Ro film and resins in the machine, then it will continue to supply 17MΩ DI water again. Normally, one year later you need to repalce the consum materials.
Q2: What is water change RATIO?
A2: 50% tape water will change to DI water, the rest 50% will change to condense water and drain out.
