PCB Cleaning Machine 0.5-3mm Thickness Auto Clean Rinse Dry

PCB Cleaning Machine
January 04, 2026
Category Connection: PCB Cleaning Machine
Chat Now Contact Us
Tags:
#3.0mm PCB Cleaning Machine #SME PCB Cleaning Machine #60L PCB Cleaning Machine
Brief: This short presentation tells the story behind the SME-PC560 PCB Cleaning Machine's design and its intended use cases. You'll see how this automated system handles PCBs from 0.5-3.0mm thickness through a complete clean-rinse-dry process in one compact unit. Watch as we demonstrate its operation in demanding industries like automotive electronics, aerospace, and medical devices.
Related Product Features:
  • Automated cleaning process handles PCBs from 0.5 to 3.0mm thickness with maximum size capacity of 330x250mm.
  • Complete four-stage cleaning cycle includes washing, rinsing, air drying, and final drying for thorough contamination removal.
  • Simple operation interface requires minimal training while supporting high-volume production with large output capacity.
  • Robust stainless steel construction with precision control systems ensures reliable performance in continuous production cycles.
  • Customizable DI water rinse time from 1-2 minutes to meet specific ion contamination requirements.
  • Operates on AC380V 3-phase power with 30KW consumption and compressed air at 0.4-0.6Mpa pressure.
  • Features dual wash baskets measuring L610xW560xH100mm for versatile PCB handling capabilities.
  • Designed for critical applications in automotive, military, aerospace, telecommunications, and medical device manufacturing.
FAQs:
  • What PCB thickness range can this cleaning machine handle?
    The SME-PC560 is engineered to handle PCB thicknesses ranging from 0.5mm to 3.0mm, accommodating various board specifications commonly used in electronics manufacturing.
  • What industries is this PCB cleaning system suitable for?
    This machine is ideal for critical industries requiring high cleanliness standards, including automotive electronics, military applications, aerospace technology, telecommunications, medical devices, and digital meter production.
  • How long does the complete cleaning and drying process take?
    The dry time ranges between 10 to 30 minutes depending on PCB specifications, while the complete automated process including cleaning, rinsing, and drying is efficiently completed within the compact machine unit.
  • What power requirements does this machine have?
    The SME-PC560 operates on AC380V 3-phase power at 50/60Hz, consuming 30KW, and requires compressed air at 0.4-0.6Mpa pressure with a flow rate of 200-400 liters per minute.
Related Videos

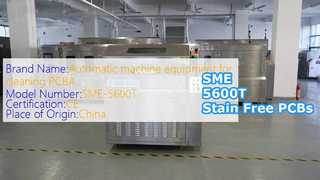

PCB Stain Removal Machine SME-5600T 00:06

PCB Stain Removal Machine SME-5600T
PCB Cleaning Machine
January 04, 2026
High Cleanliness PCB Cleaner 330x250mm 00:24

High Cleanliness PCB Cleaner 330x250mm
PCB Cleaning Machine
December 26, 2025
Shenhua electromechanical equipment company production workshop 00:15

Shenhua electromechanical equipment company production workshop
PCBA cleaning machine
December 12, 2023

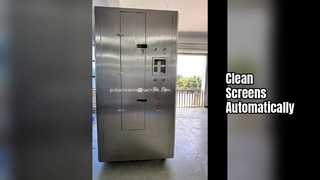

Automatic Screen Cleaner 10-65 Inch Screens 00:24

Automatic Screen Cleaner 10-65 Inch Screens
Automatic Screen Cleaning Machine
January 04, 2026

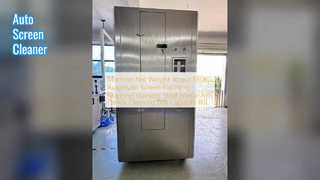

550KG Screen Cleaner Auto Clean & Dry 00:21

550KG Screen Cleaner Auto Clean & Dry
Automatic Screen Cleaning Machine
January 04, 2026

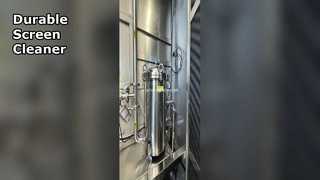

Automatic Screen Cleaner Durable Stainless Steel Frame 00:15
